Fully Automatic Superficial Twin Rockwell Hardness Tester IQUALITROL 420HRSS-150Z

China Fully Automatic Superficial Twin Rockwell Hardness Tester IQUALITROL 420HRSS-150Z supplier

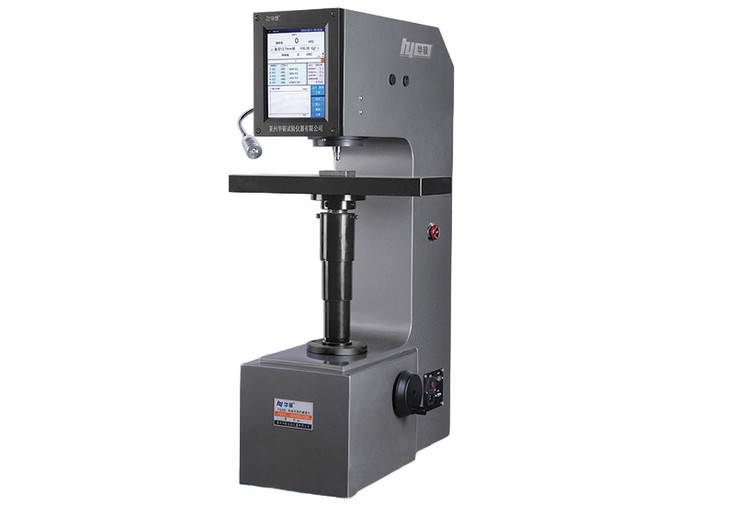

Large Image :  Fully Automatic Superficial Twin Rockwell Hardness Tester IQUALITROL 420HRSS-150Z

Product Details:

Brand Name: iqualitrol
Model Number: 420HRSS-150Z

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: Plywood Box
Delivery Time: 10 Working Days
Payment Terms: T/T
Supply Ability: 10 Sets per Month
Detailed Product Description
Model: 420HRSS-150Z Loading Control: Electronic SENSOR Loading, Closed-loop Control Of Test Force
Z Lifting Mode: One-button Start, Automatic Lifting Of The Z Axis Force Compensation: Automatic Test Force Compensation, High Force Value Accuracy



Fully Automatic Superficial Twin Rockwell Hardness Tester
IQUALITROL 420HRSS-150Z



Main Features:

● iqualitrol 420HRSS-150Z apply Electronic SENSOR loading, closed-loop control of test force;

● Clear and intuitive display, stable and reliable performance;



● One-button start, automatic lifting of the Z axis, automatic completion of the entire test process, and manual lifting of the screw rod;

● Adopting ARM high-speed processor, 8-inch LCD touch screen, easy interface operation;



● Can display the current test scale, test force, dwell time, hardness conversion value, indenter type, etc.;

● Automatic loading, dwell and unloading test force;



● Automatic test force compensation, high force value accuracy; convex hardness value can be automatically corrected;

● With software calibration function; dynamic display of displacement-force value curve during the test process, easy to observe and analyze;



● The upper and lower limits of the test hardness can be set, and the buzzer automatically prompts when the hardness exceeds the limit;

● Model 420HRSS-150Z has 30 scales in total, including 15 Rockwell hardness scales and 15 surface Rockwell scales;



● Equipped with USB and RS232 data interfaces, convenient for users to process data;

● With database storage data function, test data can be stored synchronously and exported;



● Equipped with a micro printer, which can directly print hardness test results;

● Optional host computer system for data upload and intelligent control operation;



● Accuracy meets GB/T230.2 ISO6508-2 and American ASTME18.



Technical Specification:

Model 420HRSS-150Z
Initial Test Force 3kgf (29.42N), 10kgf (98.07N)
Total Test Force

15kgf (147.1N), 30kgf (294.2N), 45kgf (441.3N),

60kgf (558.4N), 100kgf (980.7N), 150kgf (1471N)

Indenter Diamond Rockwell Indenter, ф1.588mmBall Indenter
Loading Method Automatic (Loading/Dwell/Unloading)
Automatic Test Table Automatic lifting system, One Key to Complete
Hardness Reading Touch Screen
Test Scale

HRA, HRD, HRC, HRF, HRB, HRG, HRH, HRE, HRK, HRL, HRM, HRP, HRR, HRS, HRV

HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HR15W, HR30W, HR45W, HR15X, HR30X, HR45X, HR15Y, HR30Y, HR45Y

Conversion Scale HV, HK, HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRK,
HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HBW
Data Output RS232 Interface
Resolution 0.1HR
Dwell Time 0~99s
Vertical Space 300mm
Throat 160mm
Power Supply AC220V/50Hz/1Ph
Execute Standard ISO 6508, ASTM E-18, JIS Z2245, GB/T 230.2
Dimension 533x230x875mm, Packing Dimension: 720×460×1070mm
Weight Net Weight: 110kg, Gross Weight: 130kg



Application range:

Rockwell hardness

● Determine the Rockwell hardness of soft metal materials such as ferrous metals and non-ferrous metals;

● Determine the Rockwell hardness of high-hardness alloy materials such as cemented carbide;

● Determine the Rockwell hardness of heat-treated materials such as quenching and tempering;

● Determine the Rockwell hardness of certain non-metallic materials such as plastics and bakelite.



Superficial Rockwell hardness

● Determine the surface Rockwell hardness of soft metal materials such as ferrous metals and non-ferrous metals;

● Determine the surface Rockwell hardness of metals after surface treatment (carburizing, nitriding, electroplating, etc.);

● Determine the surface Rockwell hardness of heat-treated materials such as quenching and tempering;

● Determine the surface Rockwell hardness of high-hardness alloy materials such as cemented carbide;

● Determine the surface Rockwell hardness of certain non-metallic materials such as plastics and cardboard.



Main accessories:

● Large flat test bench: 1 pc

● Small flat test bench: 1 pc

● V-type test bench: 1 pc

● Diamond cone indenter: 1 pc

● 1.588mm tungsten carbide alloy ball indenter: 1 pc

● Standard Rockwell hardness block: 5 pcs

● Standard surface Rockwell hardness block: 4 pcs (only for 420HRSS-150Z)

● Micro printer: 1 pc
