Touch Controller Rockwell Hardness Tester IQUALITROL 420HRS-150 with Force Compensation

China Touch Controller Rockwell Hardness Tester IQUALITROL 420HRS-150 with Force Compensation supplier

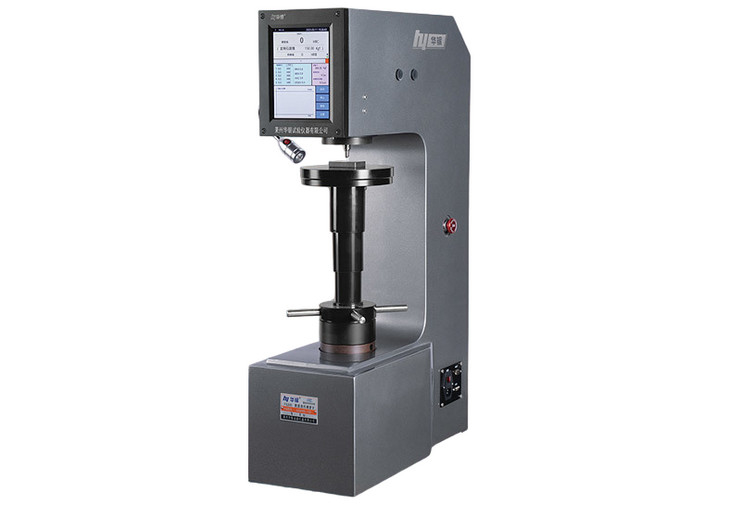

Large Image :  Touch Controller Rockwell Hardness Tester IQUALITROL 420HRS-150 with Force Compensation

Product Details:

Brand Name: iqualitrol
Model Number: 420HRS-150

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: Plywood Box
Delivery Time: 3 Working Days
Payment Terms: T/T
Supply Ability: 10 Sets per Month
Detailed Product Description
420HRS-150: Rockwell Hardness Scales 420HRSS-150: Rockwell And Surface Rockwell Scales
Calibration: Software Calibration Function; Dynamic Display Of Displacement-force Curve During Test Data Process: USB And RS232 Data Interfaces, Convenient For Users To Process Data



Touch Controller Rockwell Hardness Tester IQUALITROL
420HRS-150 with Force Compensation



Main Features:

● iqualitrol 420HRS-150 apply electronic loading, closed-loop control of test force;

● Clear and intuitive display, stable and reliable performance;



● Adopting ARM high-speed processor, 8-inch LCD touch screen, easy interface operation;

● Can display the current test scale, test force, dwell time, hardness conversion value, indenter type, etc.;



● Automatic loading, dwell and unloading of test forces;

● Automatic test force compensation, high force value accuracy; convex hardness value can be automatically corrected;



● With software calibration function; dynamic display of displacement-force curve during the test process, easy to observe and analyze;

● The upper and lower limits of the test hardness can be set, and the buzzer automatically prompts when the hardness exceeds the limit;



● The uniquely designed lead screw self-locking mechanism automatically locks the lead screw and handwheel after the preload is applied in place, and automatically applies the test force, eliminating human errors and improving measurement accuracy;



● 420HRS-150 has 15 Rockwell hardness scales; support hardness value conversion;

● Equipped with USB and RS232 data interfaces, convenient for users to process data;



● Equipped with database storage function, test data can be stored synchronously and exported;

● Equipped with a micro printer, which can directly print hardness test results;



● Optional host computer system for data upload and intelligent control operation;

● Accuracy meets GB/T230.2 ISO6508-2 and American ASTME18.



Technical Specifications:

Model 420HRS-150 Rockwell / 420HRSS-150 Twin Rockwell
Initial Test Force 3kgf (29.42N), 10kgf (98.07N)
Total Test Force

15kgf (147.1N), 30kgf (294.2N), 45kgf (441.3N),

60kgf (558.4N), 100kgf (980.7N), 150kgf (1471N)

Indenter Diamond Rockwell Indenter, ф1.588mmBall Indenter
Loading Method Automatic (Loading/Dwell/Unloading)
Hardness Reading Touch Screen
Test Scale

HRA, HRD, HRC, HRF, HRB, HRG, HRH, HRE, HRK, HRL, HRM, HRP, HRR, HRS, HRV

HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HR15W, HR30W, HR45W, HR15X, HR30X, HR45X, HR15Y, HR30Y, HR45Y

Conversion Scale HV, HK, HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRK,
HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HBW
Data Output RS232 Interface
Resolution 0.1HR
Dwell Time 0~99s
Vertical Space 245mm
Throat 160mm
Power Supply AC220V/50Hz/1Ph
Execute Standard ISO 6508, ASTM E-18, JIS Z2245, GB/T 230.2
Dimension 533x230x875mm, Packing Dimension: 720×460×1070mm
Weight Net Weight: 110kg, Gross Weight: 130kg



Application range:

Rockwell hardness

● Determine the Rockwell hardness of soft metal materials such as ferrous metals and non-ferrous metals;

● Determine the Rockwell hardness of high-hardness alloy materials such as cemented carbide;



● Determine the Rockwell hardness of heat-treated materials such as quenching and tempering;

● Determine the Rockwell hardness of certain non-metallic materials such as plastics and bakelite.



Superficial Rockwell hardness

● Determine the surface Rockwell hardness of soft metal materials such as ferrous metals and non-ferrous metals;

● Determine the surface Rockwell hardness of metals after surface treatment (carburizing, nitriding, electroplating, etc.);

● Determine the surface Rockwell hardness of heat-treated materials such as quenching and tempering;



● Determine the surface Rockwell hardness of high-hardness alloy materials such as cemented carbide;

● Determine the surface Rockwell hardness of certain non-metallic materials such as plastics and cardboard.
