Model: | 300HRSS-150 | Test Space: | Height 300mm * Depth 150mm |
---|---|---|---|
Display: | LCD Display, Menu Operation, Complete Functions | Measurement: | High-precision Grating Displacement Measurement System |

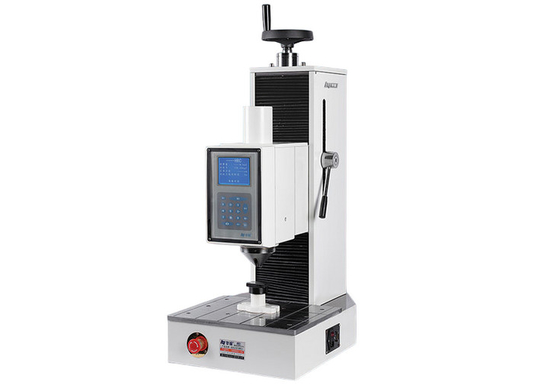

Automatic Digital Full Rockwell Hardness Tester 300HRSS-150
with Closed Loop Force Control
Main Features:
● Closed-loop control of test force;
● Automatic tracking measurement, no measurement error caused by frame deformation and workpiece deformation;
● The indenter can automatically move up and down and clamp the workpiece automatically, no need load initial test force;
● High-precision grating displacement measurement system;
● Large workbench, capable of measuring special-shaped and heavy-shaped parts;
● LCD display, menu operation, complete functions (data processing, hardness conversion, etc.);
● RS232 data interface;
● Optional computer and data process software;
● Accuracy meets GB/T230.2, ISO 6508-2 and American ASTM E18.
Technical Specifications:
Model | 300HRSS-150 |
Total Test Force |
15kgf (147.1N), 30kgf (294.2N), 45kgf (441.3N), 60kgf (558.4N), 100kgf (980.7N), 150kgf (1471N) |
Rockwell Ranges | 20-95HRA,10-100HRBW,10-70HRC,70-94HR15N,42-86HR30N,20-77HR45N,67-93HR15TW,29-82HR30TW,10-72HR45TW |
Indenter | Diamond Rockwell Indenter, ф1.588mmBall Indenter |
Loading Method | Automatic (Loading/Dwell/Unloading) |
Test Scale |
HRA, HRD, HRC, HRF, HRB, HRG, HRH, HRE, HRK, HRL, HRM, HRP, HRR, HRS, HRV HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HR15W, HR30W, HR45W, HR15X, HR30X, HR45X, HR15Y, HR30Y, HR45Y |
Data Output | RS232 Interface |
Resolution | 0.1HR |
Dwell Time | 0~99s |
Vertical Space | 300mm, Indenter movement range 50mm |
Throat | 150mm |
Power Supply | AC220V/50Hz/1Ph |
Execute Standard | ISO 6508, ASTM E-18, JIS Z2245, GB/T 230.2 |
Dimension | 600x450x1000mm, Packing Dimension: 720×560×1370mm |
Weight | Net Weight: 190kg, Gross Weight: 220kg |
