Product Details:
Payment & Shipping Terms:
|
| Model: | 200HRS-150, Touch Screen | Calibration: | By Built-in Software |
|---|---|---|---|
| Data Process: | USB And RS232 Data Interfaces | Test Space: | Height 210mm * Throat 165mm |

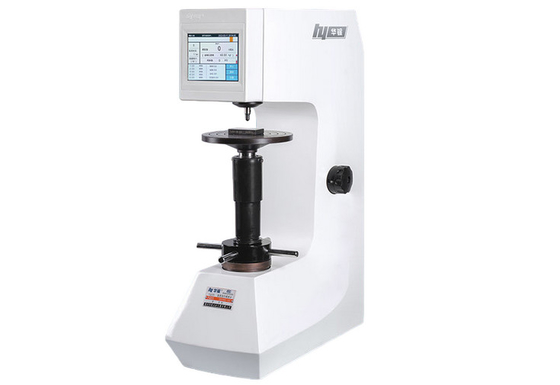

Touch Screen Digital Rockwell Hardness Tester Iqualitrol 200HRS-150
with Thermal Printer USB Port
Main Features:
● Iqualitrol 200HRS-150 apply Optimized mechanical structure, diamond-shaped appearance design;
● Automated test process, digital display of hardness value, no human error;
● 200HRS-150 manual load change; 410HRS-150 automatic load change, automatic change of test force when selecting different scales;
● Adopting ARM high-speed processor, 5.6-inch LCD touch screen, easy interface operation,
● With software calibration function; dynamic display of pressure head during loading and unloading process, real-time observation of test status;
● 15 kinds of Rockwell hardness scales; various hardness value conversion;
● Equipped with USB and RS232 data interfaces, convenient for users to process data;
● With database storage data function, test data is stored synchronously and can be exported;
● Equipped with mini printer, can directly print hardness test results;
● Optional computer system for data upload and intelligent control operation;
● Accuracy meets GB/T230.2, ISO 6508-2 and ASTM E18.
Technical Specifications:
| Model | 200HRS-150 |
| Total Test Force | 60kgf (558.4N), 100kgf (980.7N), 150kgf (1471N) |
| Rockwell Ranges | 20-95HRA,10-100HRBW,10-70HRC, |
| Indenter | Diamond Rockwell Indenter, ф1.588mmBall Indenter |
| Loading Method | Automatic (Loading/Dwell/Unloading) |
| Test Scale | HRA, HRD, HRC, HRF, HRB, HRG, HRH, HRE, HRK, HRL, HRM, HRP, HRR, HRS, HRV |
| Data Output | USB and RS232 Interface |
| Resolution | 0.1HR |
| Dwell Time | 0~99s |
| Vertical Space | 210mm |
| Throat | 165mm |
| Power Supply | AC220V/50Hz/1Ph |
| Execute Standard | ISO 6508, ASTM E-18, JIS Z2245, GB/T 230.2 |
| Dimension | 530x230x730mm, Packing Dimension: 620×360×970mm |
| Weight | Net Weight: 100kg, Gross Weight: 110kg |
Application range:
● Determine the Rockwell hardness of soft metal materials such as ferrous metals and nonferrous metals;
● Determine the Rockwell hardness of high-hardness alloy materials such as cemented carbide;
● Determine the Rockwell hardness of heat-treated materials such as quenching and tempering;
● Determine the Rockwell hardness of some non-metallic materials such as plastics and bakelite.
