Integrated Industrial Video Microscope with Zoom Lens Max 4.5X and 12 Million Pixel Camera

China Integrated Industrial Video Microscope with Zoom Lens Max 4.5X and 12 Million Pixel Camera supplier
Integrated Industrial Video Microscope with Zoom Lens Max 4.5X and 12 Million Pixel Camera supplier Integrated Industrial Video Microscope with Zoom Lens Max 4.5X and 12 Million Pixel Camera supplier Integrated Industrial Video Microscope with Zoom Lens Max 4.5X and 12 Million Pixel Camera supplier Integrated Industrial Video Microscope with Zoom Lens Max 4.5X and 12 Million Pixel Camera supplier Integrated Industrial Video Microscope with Zoom Lens Max 4.5X and 12 Million Pixel Camera supplier

Large Image :  Integrated Industrial Video Microscope with Zoom Lens Max 4.5X and 12 Million Pixel Camera

Product Details:

Brand Name: iqualitrol
Model Number: WD-I106L-A

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: Carton Box
Delivery Time: 3 Working Days
Payment Terms: T/T
Supply Ability: 10 Sets per Month
Detailed Product Description
WD-I106L-A: Zoom Lens 0.7X - 4.5X WD-I106LX-A: HDMI Video Export Format
Camera: Built-in 12 Million Pixel Digital Dedicated Camera Light Source: Top Light Source, Side Light Source, LED Continuously Adjustable Light Source

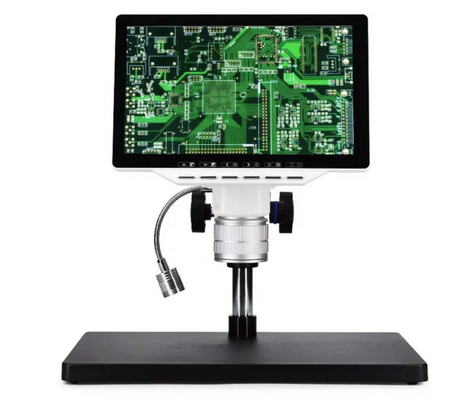

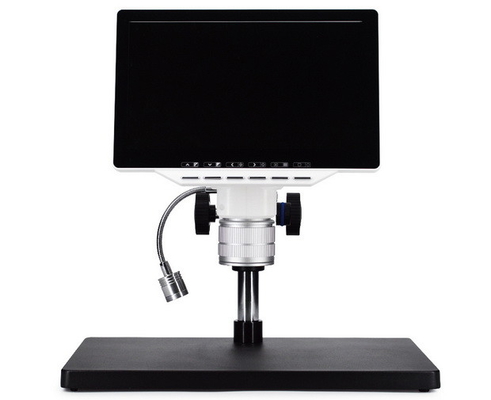

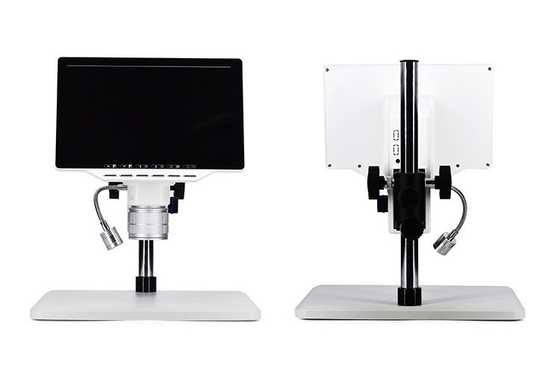

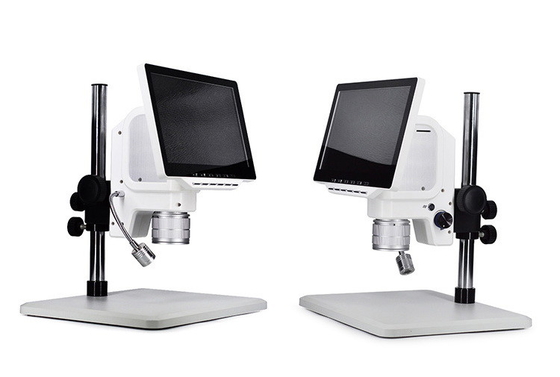

Integrated Industrial Video Microscope with Zoom Lens Max 4.5X



Brief Introduction:

WD-I106L-A, WD-I106LX-A series integrated digital video microscope is a high-tech product that perfectly combines the cutting-edge optical microscope technology, advanced photoelectric conversion technology and LCD screen technology.



Widely used in PCB boards, hardware, connectors, FPC, textiles, tickets, various industrial visual inspections, digital magnifiers, hospital research, criminal investigation, education and other fields.



Built-in 12 million pixel digital dedicated camera and digital video recorder, the device supports HDMI 1080p/60fps high-definition digital signal output, supports wireless transmission sharing, and supports wide dynamic range (WDR).

Easily free your eyes and improve work efficiency.



Technical Specifications:

Model

WD-I106

L-A

WD-I106

LX-A

LCD Size 10.6”IPS · ·
Resolution 1366*768 · ·

Digital

Specifications

Photo Pixel 1.2MP · ·

Video resolution/

frame rate

1080p/60fps · ·
Video export format HDMI @ ·
Wireless data transfer Optional o o
WDR Support · ·
Function

Automatic exposure,

exposure offset,

automatic white balance,

local storage

for photos and videos

(maximum memory 32G)

· ·
storage mode SD card · ·
External devices Projector, display @ ·

Optic

Specifications

Lens Type Zoom Lens · ·
Magnification 0.7X - 4.5X · ·

Table

Specifications

Light source

Top light source,

side light source,

LED continuously

adjustable

light source

· ·
Focus range 60mm · ·
Working distance 88mm · ·
pillar Cylinder pillar · ·

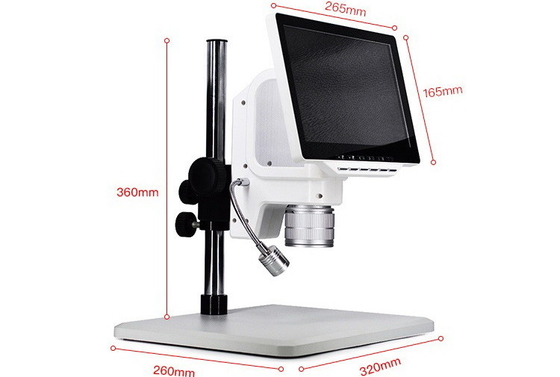

frame 380*250*20mm · ·
Optional SD card o o
Power Supply DC12V · ·
Note: . for Standard , o for optional, @ for not available



Product Features:

1. High integration: It integrates photography, video recording and LCD display. You can check the test results at any time without connecting to a PC, easily retain the required image data, and improve the efficiency of research and analysis;



2. High-definition display: It uses a 10.6-inch full-vision IPS LCD screen;

3. High-definition camera: Built-in high-definition digital camera, with a photo pixel of up to 1200W and a video resolution of 1080p/60fps;



4. High-definition HDMI output: It can be connected to an external projector or display, and supports 1080p/60fps high-definition video stream output;



5. Continuously adjustable magnification: 0.7X~4.5X continuous magnification;

6. Multiple grids: crosshairs, 2*2 grids, 3*3 grids, 4*4 grids (customizable according to customer needs);



7. Support wireless sharing transmission: You can download the device's pictures and videos through the APP for sharing and post-data processing;

8. Support wide dynamic (WDR): Improve video clarity in dark scenes;



9. Wide platform: suitable for various inspection and operation tasks, working platform size: 380*250*20mm;

10. Boot screen: boot logo or other screens can be customized according to customer needs.
