Product Details:
Payment & Shipping Terms:
|
| Model: | 200HR-150 | Standards: | GB/T230.2, ISO 6508-2, ASTM E18 |
|---|---|---|---|
| Loading: | Manual Loading, Unloading | Hardness: | Resolution 0.5HR |

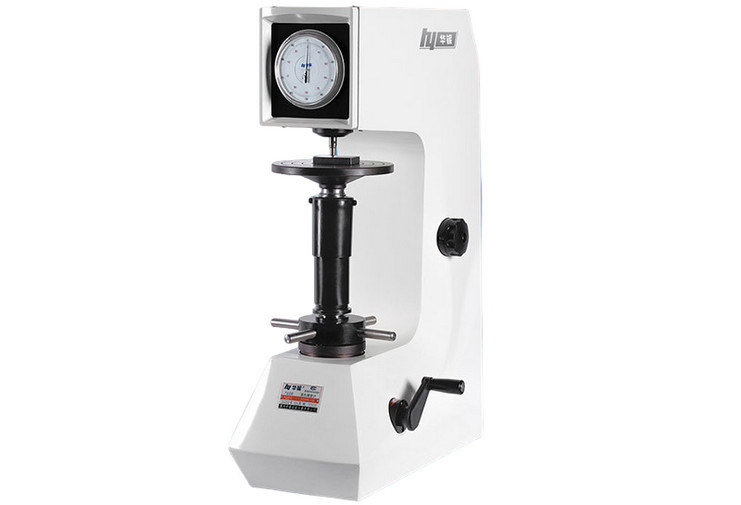

Iqualitrol Manual Loading Rockwell Hardness Tester 200HR-150
Dial Reading 0.5HR
Main Features:
1, Manual Rockwell hardness tester, reliable, durable, high test efficiency;
2, Optimized mechanical structure, diamond-shaped appearance design;
3, Precision hydraulic buffer, adjustable loading speed;
4, Mechanical manual test process, no need for electrical control;
5, Widely used in quality monitoring in production sites, strong adaptability to working environment;
6, Direct dial reading; HRA, HRBW, HRC scales;
7, Optional Rockwell other scales;
8, Accuracy meets GB/T230.2, ISO 6508-2 and US ASTM E18.
Technical Specifications:
| Model | Iqualitrol 200HR-150 |
| Total Test Force | 60kgf (558.4N), 100kgf (980.7N), 150kgf (1471N) |
| Rockwell Ranges | 20-95HRA,10-100HRBW,10-70HRC, |
| Indenter | Diamond Rockwell Indenter, ф1.588mmBall Indenter |
| Resolution | 0.5HR |
| Dwell Time | 0~99s |
| Vertical Space | 210mm |
| Throat | 165mm |
| Execute Standard | ISO 6508, ASTM E-18, JIS Z2245, GB/T 230.2 |
| Dimension | 520x230x725mm, Packing Dimension: 770×380×970mm |
| Weight | Net Weight: 100kg, Gross Weight: 120kg |
