| Model: | 400HRMD-45 | Feature: | Strong Structure, Good Rigidity, Reliable, Durable, High Test Efficiency |
|---|---|---|---|
| Test Process: | Automated Test Process, No Human Operation Error | Test Force: | 15kgf (147.1N), 30kgf (294.2N), 45kgf (441.3N), |

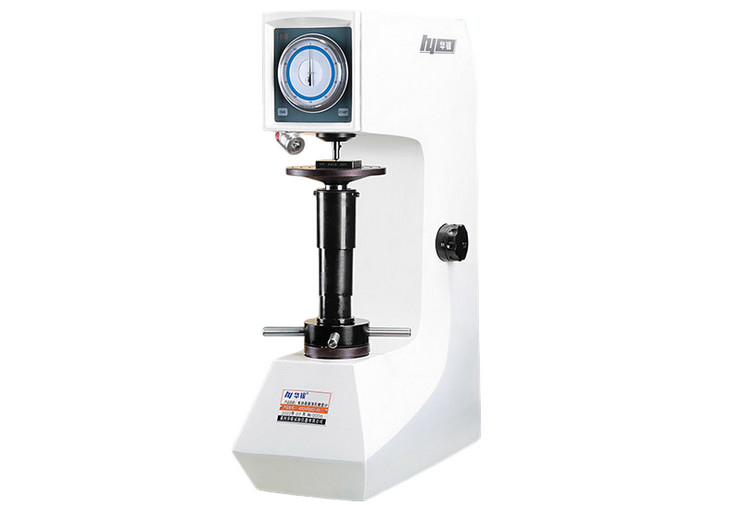

Motorized Loading Superficial Rockwell Hardness Tester iqualitrol
400HRMD-45 with Dial Gauge Reading
Main Features:
1, Strong structure, good rigidity, reliable, durable, high test efficiency;
2, Frictionless spindle, high test force accuracy;
3, Automated test process, no human operation error;
4, Direct dial reading; HRN, HRTW scale;
5, Optional other Superficial Rockwell scales;
6, Accuracy meets GB/T230.2, ISO6508-2 and US ASTM E18.
Technical Specification:
| Model | iqualitrol 400HRMD-45 |
| Initial Test Force | 3kgf (29.42N) |
| Total Test Force | 15kgf (147.1N), 30kgf (294.2N), 45kgf (441.3N), |
| Hardness Range | 70-94HR15N, 42-86HR30N, 20-77HR45N, 67-93HR15TW, 29-82HR30TW, 10-72HR45TW |
| Indenter | Diamond Rockwell Indenter, ф1.588mmBall Indenter |
| Loading Method | Automatic (Loading/Dwell/Unloading) |
| Hardness Reading | Dial Gauge |
| Test Scale | HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HR15W, HR30W, HR45W, HR15X, HR30X, HR45X, HR15Y, HR30Y, HR45Y |
| Conversion Scale | HV, HK, HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRK, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HBW |
| Resolution | 0.5HRN (HRT) |
| Dwell Time | 0~99s |
| Vertical Space | 210mm |
| Throat | 165mm |
| Power Supply | AC220V/50Hz/1Ph |
| Execute Standard | ISO 6508, ASTM E-18, JIS Z2245, GB/T 230.2 |
| Dimension | 523x220x735mm, Packing Dimension: 720×460×970mm |
| Weight | Net Weight: 90kg, Gross Weight: 110kg |
