| Model: | HRM-45 | Loading Control: | Manual Loading And Unloading |
|---|---|---|---|
| Hardness Reading: | By Dial Gauge With Resolution 0.5HRN (HRT) | Test Space: | Vertical 170mm * Throat 135mm |

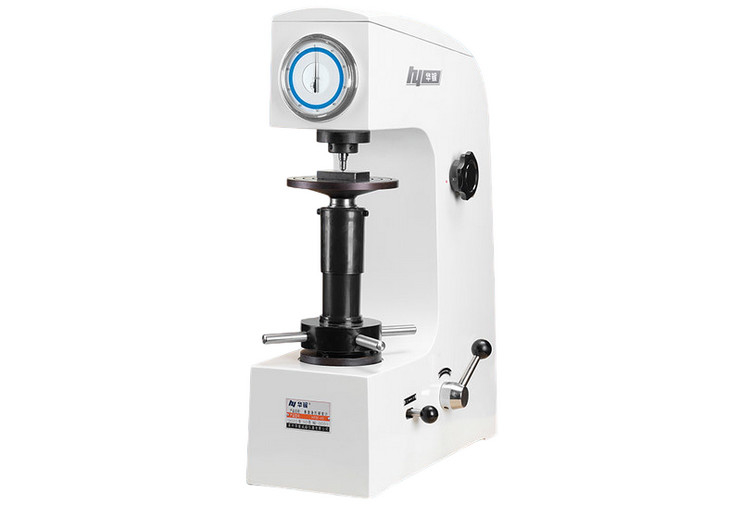

Superficial Rockwell Hardness Tester iqualitrol HRM-45 with Manual Loading
Main Features:
● Adopts the stable and reliable structure of HR-150A;
● Manual superficial Rockwell hardness tester, reliable, durable and high testing efficiency;
● Direct dial reading, HRN, HRTW scale;
● Optional other Rockwell scales;
● Precision hydraulic buffer, adjustable loading speed;
● Mechanical manual testing process, no electrical control required;
● Widely used in quality monitoring in production sites, strong adaptability to working environment;
● Accuracy meets GB/T230.2, ISO6508-2 and US ASTM E18.
Technical Specification:
| Model | Iqualitrol HRM-45 |
| Total Test Force | 15kgf (147.1N), 30kgf (294.2N), 45kgf (441.3N), |
| Rockwell Ranges | 70-94HR15N, 42-86HR30N, 20-77HR45N, 67-93HR15TW, 29-82HR30TW, 10-72HR45TW |
| Indenter | Diamond Rockwell Indenter, ф1.588mmBall Indenter |
| Resolution | 0.5HRN (HRT) |
| Dwell Time | 0~99s |
| Vertical Space | 170mm |
| Throat | 135mm |
| Execute Standard | ISO 6508, ASTM E-18, JIS Z2245, GB/T 230.2 |
| Dimension | 520x230x725mm, Packing Dimension: 770×380×970mm |
| Weight | Net Weight: 70kg, Gross Weight: 90kg |
