Model: | 400XHRS-150 | Rockwell Scales: | HRE, HRM, HRL, HRR, HRP, HRS, HRV |
---|---|---|---|
Display: | 5.6-inch LCD Touch Screen, Which Is Easy To Operate | Data Process: | USB And RS232 Data Interfaces |

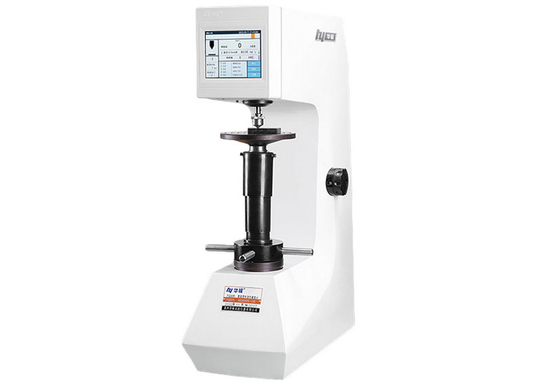

Touch Screen Plastic Rockwell Hardnes Tester iqualitrol 400XHRS-150 with High Speed Processor
Main Features:
● The test process is automated, the hardness value display on LCD, and there is no human error;
● It uses an ARM high-speed processor and a 5.6-inch LCD touch screen, which is easy to operate;
● E, M, L, R, P, S, V plastic Rockwell hardness scale;
● The indenter is dynamically displayed during the loading and unloading process, and the test status is observed in real time;
● Equipped with a micro printer to print hardness test results;
● Equipped with USB and RS232 data interfaces, which is convenient for users to process data;
● It has the function of storing data in the database, and the test data can be stored synchronously and exported;
● The accuracy meets JB/T7409-2015.
Technical Specification:
Model | 400XHRS-150 |
Total Test Force | 60kgf (558.4N), 100kgf (980.7N), 150kgf (1471N) |
Rockwell Ranges | 70-100HRE,50-115HRL,50-115HRM,50-115HRR,50-115HRP,50-115HRS,50-115HRV |
Indenter | Diamond Rockwell Indenter, Ball Indenter |
Loading Method | Automatic (Loading/Dwell/Unloading) |
Test Scale | HRE, HRM, HRL, HRR, HRP, HRS, HRV plastic Rockwell hardness scale |
Data Output | USB and RS232 Interface |
Resolution | 0.1HR |
Dwell Time | 0~99s |
Vertical Space | 210mm |
Throat | 165mm |
Power Supply | AC220V/50Hz/1Ph |
Execute Standard | ISO 6508, ASTM E-18, JIS Z2245, GB/T 230.2 |
Dimension | 530x230x730mm, Packing Dimension: 620×360×970mm |
Weight | Net Weight: 100kg, Gross Weight: 110kg |
