Product Details:
Payment & Shipping Terms:
|
| Model: | 200XHRD-150 | Structure: | Mechanical Structure, Diamond-shaped Appearance Design |
|---|---|---|---|
| Application: | Non-metallic Composite Materials And Non-metallic Soft Materials | Test Force: | 60kgf (558.4N), 100kgf (980.7N), 150kgf (1471N) |

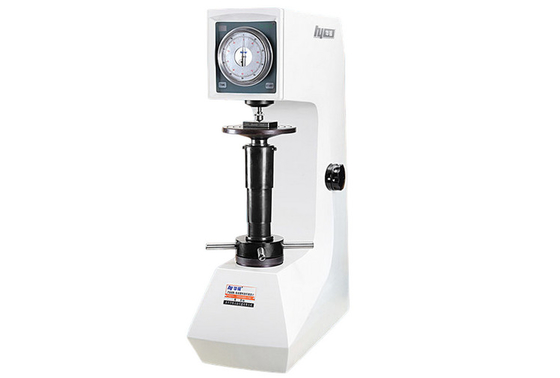

Motorized Loading Plastic Rockwell Hardness Tester iqualitrol 200XHRD-150 with Resolution 0.5HR
Main Features:
● Optimized mechanical structure, diamond-shaped appearance design;
● Strong structure, good rigidity, reliability, durability, high test efficiency;
● Automated test process, no human error;
● Accuracy meets JB/T7409-2015.
Application Range:
● Determine the Rockwell hardness of plastics;
● Determine the Rockwell hardness of non-metallic composite materials and non-metallic soft materials;
● Determine the Rockwell hardness of various friction materials and soft metal materials.
Technical Specifications:
| Model | 200XHRD-150 |
| Total Test Force | 60kgf (558.4N), 100kgf (980.7N), 150kgf (1471N) |
| Rockwell Ranges | 70-100HRE,50-115HRL,50-115HRM,50-115HRR,50-115HRP,50-115HRS,50-115HRV |
| Indenter | Diamond Rockwell Indenter, Ball Indenter |
| Test Scale | HRE, HRM, HRL, HRR, HRP, HRS, HRV plastic Rockwell hardness scale |
| Resolution | 0.5HR |
| Loading Control | Automatic loading, dwell, unloading |
| Dwell Time | 0~99s |
| Vertical Space | 210mm |
| Throat | 165mm |
| Power Supply | AC220V/50Hz/1Ph |
| Execute Standard | ISO 6508, ASTM E-18, JIS Z2245, GB/T 230.2 |
| Dimension | 530x230x730mm, Packing Dimension: 620×360×970mm |
| Weight | Net Weight: 100kg, Gross Weight: 110kg |
