Product Details:
Payment & Shipping Terms:
|
| Model: | IMet-MDS300 | Observation: | Professional Metallurgical Microscope For Bright Field, Polarizing Observation |
|---|---|---|---|
| Trinocular Head: | Seidentopf Trinocular Head, Light Split E70:P30 No Need Switch | Working Stage: | Large Working Stage Size 180x155mm, Moving Range 75×40mm, Scale 0.1mm |
| Brightness: | High Brightness Reflect Light 5W Warm LED Powered By 5V USB Port | LWD Infinity Objective: | Metallurgical LWD Infinity Plan BF (Bright Field) Objectives |

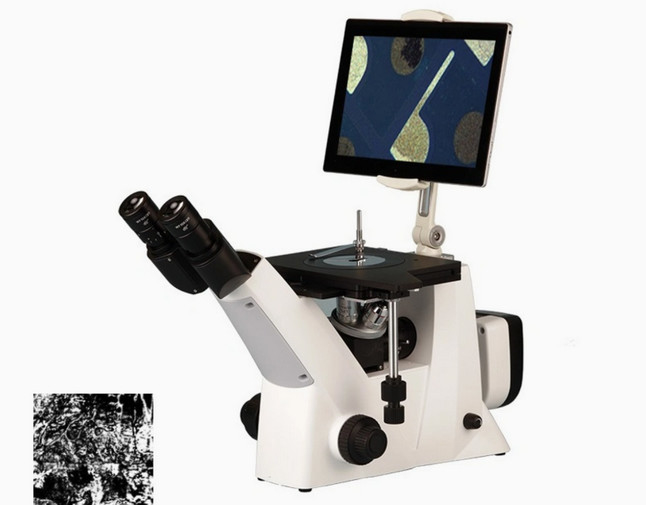

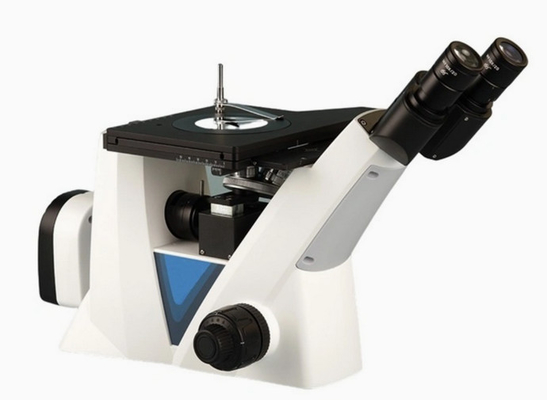

Inverted Metallurgical Microscope Integrates Dark and Bright Field Observation iqualitrol iMet-MDS300
Technical Specifications:
| Item | Specification | iMet-MDS300 | |
| Eyepiece | WF10X/20mm (High eye-point) | ● | |
| WF10X/20mm (High eye-point, adjustable Focus, Reticule 0.1mm) | ● | ||
|
Metallurgical LWD Infinity |
LPL 5×／0.13 | W.D=16.04mm | ● |
| LPL 10×／0.25 | W.D.= 18.48mm | ● | |
| LPL 20×／0.40 | W.D.= 8.35mm | ● | |
| LPL 50×／0.70 | W.D.= 1.95mm | ● | |
| LPL 80×／0.80 | W.D.= 0.85mm | ○ | |
| LM Plan FL 100×／0.85(Dry) | W.D.= 3.00mm | ○ | |
|
Butterfly-shaped binocular design, the lens barrel can rotate 360°, raising the eye point height, making it easier for people with different sitting heights to use |
Eyepiece tube 360°rotated, |
● | |
| Nosepiece | Quadplex | ● | |
| Mechanical Stage |
Stage size: 180 mm×155mm, |
● | |
| Coaxial Coarse and Fine Focusing unit |
Coarse stroke: 10mm, |
● | |
| Polarizing Unit | Polarizer /Analyzer | ● | |
| Illumination | 5WLED Warm lamp (Input voltage:100V～240V) | ● | |
| Filter | Grey | ○ | |
| C-mount | 0.65×C-Mount (built-in) | ● | |
| Universal Holder for HD Screen | ○ | ||
| HDMI Camera (with measurement function) | ○ | ||
| 10.1” HD Screen | ○ | ||
Note: "●"In Table Is Standard outfits, "○" Is Optional Accessories.
Packing Size: 500mm×425mm×305mm Gross Weight:9.0 kgs Net Weight: 7.0 kgs
