Infinity Parallel Optical System iqualitrol Stereo Microscope NSZ-806 with LED Illumination

China Infinity Parallel Optical System iqualitrol Stereo Microscope NSZ-806 with LED Illumination supplier

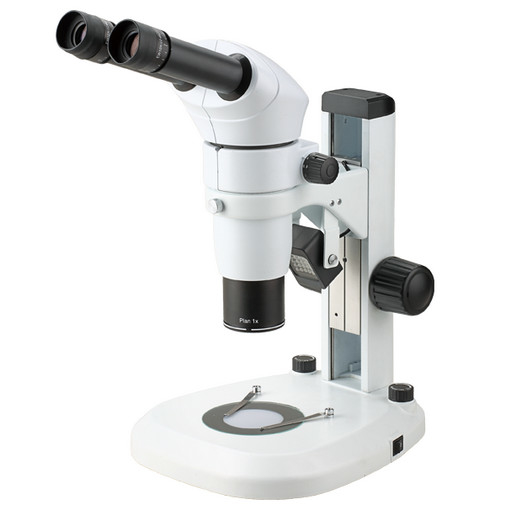

Large Image :  Infinity Parallel Optical System iqualitrol Stereo Microscope NSZ-806 with LED Illumination

Product Details:

Brand Name: iqualitrol
Model Number: NSZ-806

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: Carton Box
Delivery Time: 10 Working Days
Payment Terms: T/T
Supply Ability: 10 Sets per Month
Detailed Product Description
NSZ-806: Zoom Objective 0.8×-5× NSZ-808: Zoom Objective 0.8×-6.4×
NSZ-810: Zoom Objective 0.8×-8× Illumination: LED Light For Both Incident And Transmitted Illumination



Infinity Parallel Optical System iqualitrol Stereo Microscope NSZ-806 with LED Illumination



Features:
1, Excellent Image Quality & Optical Performance with Infinity Parallel Optical System.
2, Comfortable Operation with Ergonomic Design Principle.


3, With LED light for both incident and transmitted illumination, Providing even illumination and life expectancy can reach 6000 hours.


4, A Wide Range of Accessories to be Equipped with the Microscope for Multi-purpose is an Outstanding Assistant in Industrial, Medical and Scientific Research Areas.



Technical Specifications:

    NSZ-806 NSZ-808 NSZ-810
Drawing Tube Binocular Head, 20°Inclination,
Interpupilary distance 55-75mm
Tilting Binocular Head, 0°-35° Inclination
Photo Attachment
(one photo tube)

Photo Attachment
(two photo tube)

Eyepiece EW10×/22
WF15×/16
WF20×/12
Zoom Objective 0.8×-5×
0.8×-6.4×
0.8×-8×
Objective Plan Achromatic Objective 1×
Plan Apochromatic Objective 0.5×
Plan Achromatic Objective 2×
Achromatic Objective 0.3×
Zoom Ratio 1:6
1:8
1:10
Working Distance 78mm
Focusing Focusing Range 105mm
Illumination Transmission or Reflection LED Illumination, Brightness Adjustable
Coaxial Illumination
Fluorescent
Attachment

Dark Field Attachment
Photo/ Video Attachment
Simple
Polarization Set
Iris Diaphragm
Mechanical Stage
Temperature Stage
Universal Table Stand
D Stand
Coaxial Coarse & Fine Focusing Unit

● is for standard delivery, ○ is for optional
