High Definition Touch Screen Ultrasonic Flaw Detector iSonic-6AUT with Android System

China High Definition Touch Screen Ultrasonic Flaw Detector iSonic-6AUT with Android System supplier

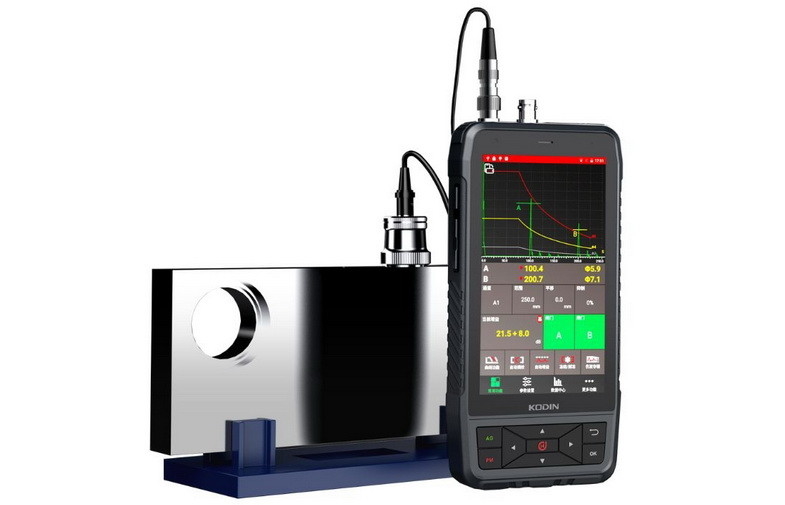

Large Image :  High Definition Touch Screen Ultrasonic Flaw Detector iSonic-6AUT with Android System

Product Details:

Brand Name: iqualitrol
Model Number: iSonic-6AUT

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: Carton Box
Delivery Time: 10 Working Days
Payment Terms: T/T
Supply Ability: 10 Sets per Month
Detailed Product Description
Model: ISonic-6AUT Power Supply: Built-in Ultra-large Capacity Special Polymer Lithium Battery, Fast Charging Function
Data Process: Wifi/Bluetooth And Other Data Communication Functions Detection Mode: Positive Detection, Negative Detection, Full Detection, Radio Frequency



High Definition Touch Screen Ultrasonic Flaw Detector iqualitrol iSonic-6AUT with Android System



Features:

Lightweight and portable, one-handed operation;

Tough body structure, three-proof effect;



Equipped with Android system, powerful functions;

100M high-speed data acquisition and multi-core CPU high-speed processing capability;



IPS high-definition touch screen, strong human-computer interaction;

Wifi/Bluetooth and other data communication functions;



The flaw detection interface automatically switches the display according to the gravity sensor horizontal and vertical screen;

Built-in ultra-large capacity special polymer lithium battery, fast charging function;



Magnetic charging interface, convenient and fast;

Intelligent voice broadcast;



Flaw Detection Technical Specifications:

Gain range: 0~110dB;

Pulse type: negative square wave pulse Pulse;



Pulse width: 100~300ns;

Transmitting voltage: 200V, 400V;



Matching resistance: 200Ω, 500Ω;

Detection mode: positive detection, negative detection, full detection, radio frequency;



Working mode: single crystal, dual crystal;

Sound velocity range: 1000~9999m/s;



Vertical linear error: <3%;

Horizontal linear error: <1%;



Sensitivity margin: >42dB;

Resolution: >30dB;



Dynamic range: >32dB;

Alarm function: gate alarm, curve alarm;



Amplitude reading: amplitude percentage, relative gate equivalent, relative curve equivalent, θ value display, θ4 equivalent;

Working environment: temperature -10℃~40℃ Humidity 20%~90%RH;



Power supply: built-in DC 5000mAh/7.6V lithium-ion battery, external DC 220V/50Hz AC + adapter (10V/2A);

Memory: 16GB eMMC + 2GB LPDDR3, expandable 32GB TF card;



CPU: 64-bit quad-core 1.2G;

Operating system: Android;
