Ultrasonic Thickness Gauge IQUALITROL iSonic-3 with Color Screen and High Speed Processor

China Ultrasonic Thickness Gauge IQUALITROL iSonic-3 with Color Screen and High Speed Processor supplier

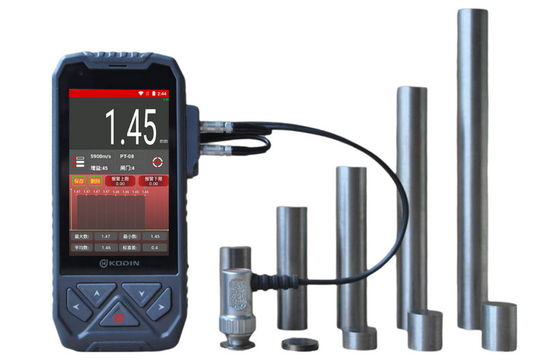

Large Image :  Ultrasonic Thickness Gauge IQUALITROL iSonic-3 with Color Screen and High Speed Processor

Product Details:

Brand Name: iqualitrol
Model Number: IQUALITROL iSonic-3

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: Carton Box
Delivery Time: 10 Working Days
Payment Terms: T/T
Supply Ability: 10 Sets per Month
Detailed Product Description
Model: IQUALITROL ISonic-3 Principle: Measures Thickness Based On The Ultrasonic Pulse Reflection Principle
Application Range: Petroleum, Chemical Industry, Electricity, Boilers, Metallurgy, Shipbuilding, Aviation, And Aerospace Advantages: 64-bit Ultra-high-speed Quad-core Processor, Large-capacity EMMC Memory, IPS High-definition Color Screen



Ultrasonic Thickness Gauge IQUALITROL iSonic-3 with Color Screen
and High Speed Processor



Application range:

IQUALITROL iSonic-3 Ultrasonic thickness gauge measures thickness based on the ultrasonic pulse reflection principle, and is mainly used to measure the thickness of hard materials, such as metal materials of steel, stainless steel, aluminum, copper, chrome alloy, and non-metals of plastics, rubber, ceramics, and glass.



The instrument is widely used in various fields such as petroleum, chemical industry, electricity, boilers, metallurgy, shipbuilding, aviation, and aerospace.



Instrument features:

The instrument is developed based on the Android platform, and realizes a variety of intelligent detection functions on the basis of meeting traditional measurements.



This instrument is equipped with a 64-bit ultra-high-speed quad-core processor, large-capacity EMMC memory, IPS high-definition color screen, front/rear camera, GPS positioning system, wireless transmission system, alarm vibration motor, microphone, stereo speakers and other data processing equipment, which can easily realize audio/video recording, measurement report recording, and curve icon measurement.



The measured data is analyzed in various ways such as numerical values, trend charts, bar charts, monitoring limits, stereo alarms, and human voice broadcasts.



This instrument incorporates iqualitrol's industrial design concept. The casing design follows ergonomics and fits the operating habits of industrial sites. The casing protection adopts waterproof, dustproof and drop-proof design to adapt to various complex industrial sites.



Hardware configuration:

Processor 64-bit quad-core 1.3GHz
Camera front 200W; rear 800W
Memory RAM: 1GB LPDDR3; ROM: 8GB EMMC storage
Display mode 3.97-inch IPS high-definition color screen, 800*480 pixels
Data interface Bluetooth, USB
Storage method local storage
Protection design dustproof, waterproof, and drop-proof
Power supply built-in 3000MA lithium-ion polymer battery
Gain adjustment 8dB-49dB
Gate 1-50
Measuring range 0.8~200mm (PT-8 standard probe)
Sound velocity range 1000~9999m/s
Display digits four digits
Indication accuracy 0.1mm (measurement greater than 100mm); 0.01mm (measurement less than 100mm)
Measurement error (H is the measured thickness value):
H<10mm ±0.05mm
H>=10mm ±(0.01+H/200)
Probe frequency 2MHz-10MHz
Optional probes

PT-8 probe (0.8-200mm)

PT-6 probe (0.65-150mm)

PT-4 probe (0.8-50mm)

PT-10 probe (0.8-200mm)

GT-12 probe (1.5-200mm)

ZT-12 probe (3.0-500mm)

Key backlight backlight can be turned on and off
Power-off mode key shutdown, software icon shutdown can be selected
Using Environment relative humidity: ≤90%; temperature: -10℃~+40℃
Working time 7 hours
Weight and Dimension

Host size: 161mm(L)*73mm(W)*21mm(H)

Total weight: 261g (excluding probe)
