Product Details:
Payment & Shipping Terms:
|
| Model: | IQUALITROL MC-3001 | Principle: | Magnetic Induction And Eddy Current |
|---|---|---|---|
| Probe Connection: | Split Wire Connection (arbitrary Matching) | Measurement Speed: | Single Measurement And Continuous Measurement |

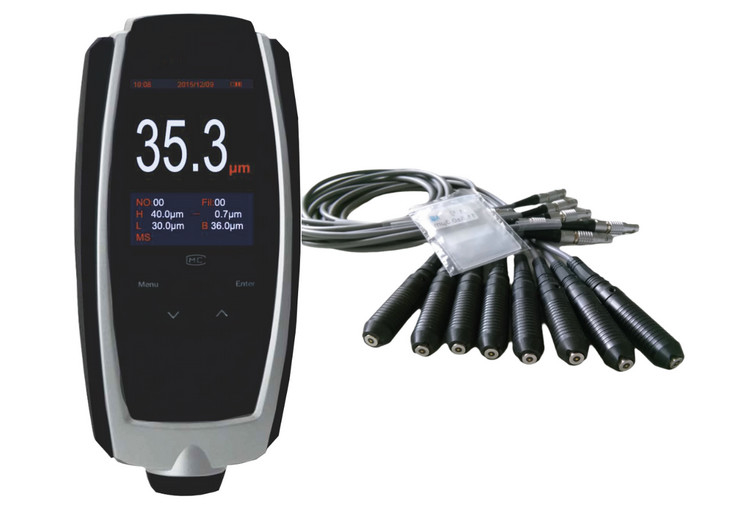

Fully Split Coating Thickness Gauge iqualitrol MC-3001 with Separated Measuring Probes
Technical Specifications:
| Measurement Range by Probes Type |
N0.5: 0-0.5㎜ F0.5: 0-0.5㎜ F1.2: 0-1.25㎜ N1.2: 0-1.25㎜ F3: 0-3㎜ F5: 0-5㎜ F10: 0-10㎜ |
| Measurement Mode | Simplified Mode, Monitoring Mode, Statistics Mode, Minimum Capture |
| Measurement Principle | Magnetic Induction and Eddy Current |
| Display Accuracy by Measuring Ranges |
0~99.9μm: 0.1μm 100~999μm:1μm 1㎜~10㎜: 0.01㎜ More than 10㎜: 0.1㎜ |
| Probe connection method | Split wire connection (arbitrary matching) |
| Using temperature | Relative humidity: ≤90%; Temperature: -10℃~+40℃ |
| Temperature compensation | By Using IQUALITROL "Phase-locked loop" technology |
| Measurement speed | single measurement and continuous measurement |
| Power supply | Two pcs AA batteries |
| Weight and Dimension |
Host size: 150mm(L)*68mm(W)*33mm(H) Weight: 220g (including battery) |
