| Model: | Full Auto Rockwell Tester IRock-440T | GRR: | Gage Repeatability And Reproducibility Of IRock-440T Less Than 10% |
|---|---|---|---|
| Highlighted Feature: | Data Storage, Out-of-tolerance Prompt Function, Automatically Calculate The Maximum, Minimum, Average Value | Simple Operation: | One-click To Complete The Workpiece Lifting, Force Loading, Dwell, Unloading, Display Hardness Value |
| Controller: | 8-inch High-definition Touch Screen Display And Operation, The Newly Upgraded Structure And Electrical Design | Weight Loading: | Can Perform Hardness Tests On All Rockwell And Superficial Rockwell Scales, One-button Operation, And Automatic Testing |

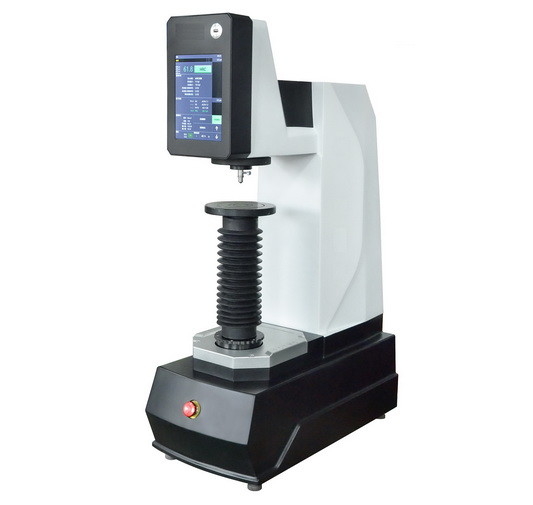

Fully Automatic Twin Rockwell Hardness Tester iqualitrol iRock-440T
by One Key Operation
Technical Data Download: iqualitrol Rockwell Hardness Tester iRock-440T
Technical Specifications:
| Model | iqualitrol iRock-440T |
| Initial Test Force | 3kgf (29.42N), 10kgf (98.07N) |
| Total Test Force |
15kgf (147.1N), 30kgf (294.2N), 45kgf (441.3N), 60kgf (588.4N), 100kgf (980.7N), 150kgf (1471N) |
| Rockwell Indenters | Diamond Rockwell Indenter, ф1.588mmBall Indenter |
| Loading Method | Automatic (Loading/Dwell/Unloading) |
| Operation Style | One Key Operation, Auto Ascending and descending |
| Display and Controller | 8-inch high-definition touch screen controller |
| Hardness Resolution | 0.1HR |
| Hardness Scales |
HRA, HRD, HRC, HRFW, HRBW, HRGW, HRHW, HREW, HRKW, HRL, HRM, HRP, HRR, HRS, HRV HR15N, HR30N, HR45N, HR15TW, HR30TW, HR45TW, HR15W, HR30W, HR45W, HR15X, HR30X, HR45X, HR15Y, HR30Y, HR45Y |
| Hardness Conversion Scales | HV, HK, HRA, HRBW, HRC, HRD, HREW, HRFW, HRGW, HRKW, HR15N, HR30N, HR45N, HR15TW, HR30TW, HR45TW, HBS, HBW, HSD, HLD |
| Data Statistics | Can save 100 data by each scale, automatically calculate Max, Min, Avg |
| Data Output |
RS232 used to print data in TXT format, connect computer, software upgrade; USB used to save data to USB disc in format CVS; |
| auxiliary functional | Upper and lower limit settings, out-of-tolerance judgment prompts |
| Dwell Time | 0~99s, adjustable |
| Max Height of Specimen | 300mm |
| Depth Throat | 158mm |
| Power supply | AC220V, 50Hz |
| Executive Standards | GB/T 230, ISO 6508, ASTM E18, JIS Z2245 |
| Dimension | 615×306×925mm |
| Net Weight | 83kg |
Brief Introduction and Features:
The iqualitrol iRock-440T automatic full Rockwell hardness tester adopts a new aluminum alloy die-casting process, with a sturdy and stable shell, novel and beautiful appearance.
The instrument adopts weight loading mechanism, which can perform hardness tests on all Rockwell and superficial Rockwell scales, one-button operation, and automatic testing.
The GRR (Gage Repeatability & Reproducibility) of iRock-440T less than 10%, excellent repeatability and reproducibility, and reliable measurement.
The machine system is classic and stable, the body is extremely rigid, the operation interface is friendly, and it is easy to use and maintain.
iRock-440T can not only meet the high standards of hardness testing in laboratories, but also is suitable for routine hardness testing in the industry on automatic production lines.
The hardness of the screw rod after heat treatment reaches between 35HRC and 40HRC, which is conducive to the stability of the detection data at different heights of the screw rod. The screw rod after heat treatment and wire drawing process is solid and wear-resistant, which greatly reduces the probability of the screw rod wear caused by long-term use and the gap that eventually affects the measurement stability;
Adopting 1:1 high-precision displacement sensor, real-time display of test depth;
Adopting 8-inch high-definition touch screen display and operation, the newly upgraded structure and electrical design, one-button operation, both excellent test efficiency and operation experience;
Supports conversion of various hardness scales, can select different conversion standards, realize one value multiple conversion function, and can display 4 conversion hardness values at the same time;
One-click to complete the workpiece lifting, force loading, dwell, unloading, display hardness value, and the test bench returns to the initial position;
With data storage, out-of-tolerance prompt function, automatically calculate the maximum, minimum, average value, etc., can output the test results to USB disk, and equipped with RS232 interface for users to connect to the computer output.
