| Model: | Iqualitrol ILS-2121 | Air Source: | 0.4 - 0.6Mpa |
|---|---|---|---|
| Alarm Function: | Floating Lock/leak Lock/slipping Teeth | Feeding Method: | Vacuum Suction, Magnetic Suction |
| Transmission Mode: | Closed Loop, Stepper Motor | Applicable Screws: | M1-M6 (length Within 20MM) |

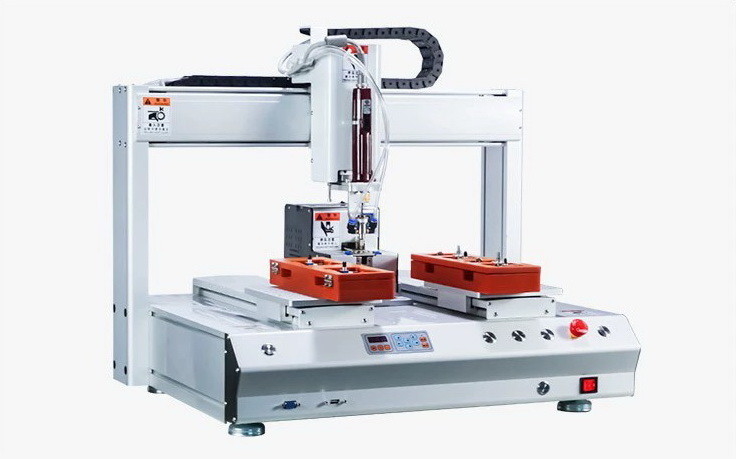

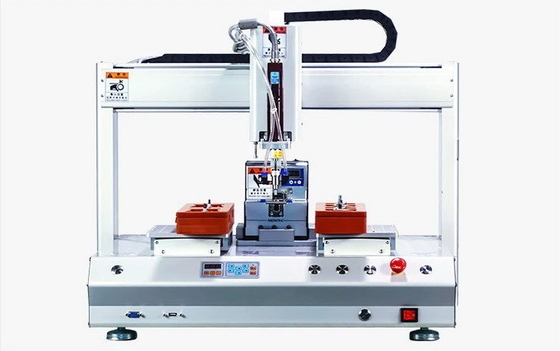

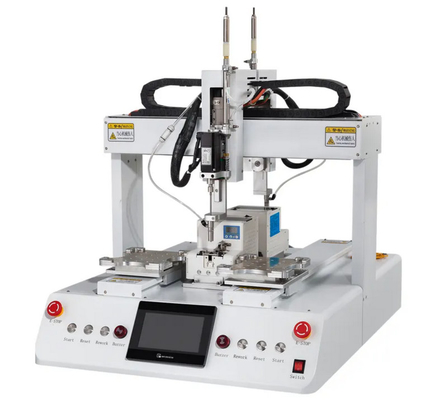

Fully Electric Customized Double-head double-station automatic screw locking machine
Features:
1, Back to back type can tighten two different screws on the same product on the same Y axis, so as to achieve extremely fast and efficient work mode.
2, The operator can use manual positioning to do the programming. It is highly efficient and very easy to learn the operation.
3, Support auto sensing start operation function.
4, Servo motor or electric screwdriver are optional. Both of them can adjust the torque and rotation speed freely.
5, The operator can use manual positioning do the programming. It is highly efficient and very easy to learn the operation.
6, With alarm function to fastening missing, untightened screws, worn tread, etc.
7, Support auto sensing start operation function.
8, Servo motor or electric screwdriver are optional. Both of them can adjust the torque and rotation speed freely.
Technical Specifications:
| Model | iLS-2121 |
| Locking range | 210*210*90(mm)*2[customization supported] |
| Control system | motion control card + touch screen integrated control |
| Locking time | 0.8-1.5s/pcs (depending on the screw) |
| Torque screwdriver | servo screwdriver (intelligent screwdriver optional) |
| Moving speed | 0-1500mm/s |
| Applicable screws | M1-M6 (length within 20MM) |
| Repeatability | 0.02mm |
| Transmission mode | closed loop/stepper motor (screw servo optional) |
| Feeding method | vacuum suction/magnetic suction |
| Feeding unit | one group/two groups |
| Program capacity | 1000 groups |
| Communication port | USB |
| Alarm function | Floating lock/leak lock/slipping teeth |
| Equipment power supply | AC220V 50HZ |
| Equipment power consumption | 800W |
| Working air source | 0.4-0.6Mpa |
| Dimensions | 990*694*608 (mm) |
| Advantage | Human-machine touch screen operation/data collection/support MES and CCD vision/scan code lock payment/remote control/ visual inspection, etc. |
