| Model: | ZD-60S Iqualitrol | Control Mode: | Touch Screen Programmable Control |
|---|---|---|---|
| Vibration Direction: | Up Down, Left Right, Front Back | Load Capacity: | Max 60kg |
| Frequency Range: | 5—3000Hz, Adjustable | Acceleration: | 10G (no Load) |

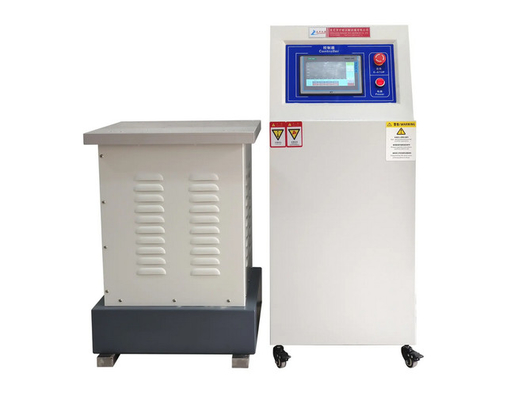

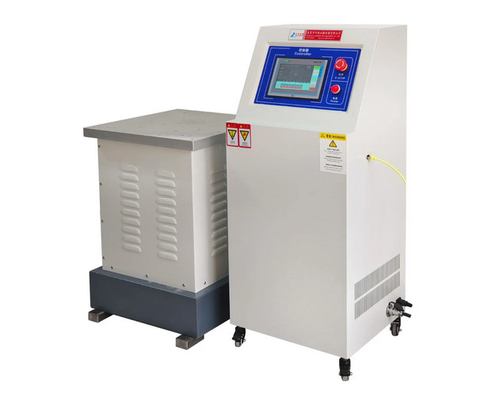

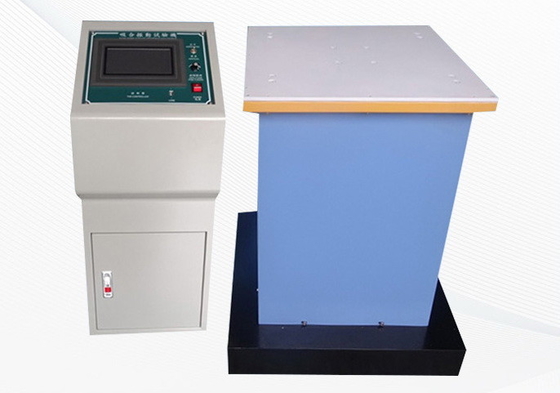

Laboratory Electromagnetic Vibration testing machine iqualitrol ZD-60S Table Vibration Shock Lab Tester 3 axis vibration table
Brief Introduction:
The iqualitrol ZD-60S Vibration test is to simulate the impact of various vibration environments encountered by products in the transportation, installation, storage and use environments to determine whether the product can withstand various environmental vibrations.
The vibration table mainly uses the vibration generated by simulating rotation, pulsation, and vibration (appearing on ships, aircraft, vehicles, and space vehicles), as well as product structure resonance frequency analysis and resonance point residence verification, so that the product can be used in the development and manufacturing process.
For early fault diagnosis or quality inspection. Test application: fixed frequency, sweep frequency, logarithm, multiplier, program, random.
Features:
1, Precise design and manufacture, small size, quiet, humanized control concept, the technology has reached the international advanced level.
2, The base of the machine is made of heavy-duty steel with damping rubber pads, which is easy to install and runs smoothly without installing anchor screws.
3, Brand frequency controller, PID adjustment function, make the equipment work more stable and reliable.
4, Multiple operation modes of fixed frequency, frequency sweep and frequency multiplication, adapting to the test requirements of different industries.
Technical Specifications:
| Control mode | Touch Screen Programmable Control |
| Vibration Direction | Up Down, Left right, front back |
| Vibration Mode | Single-axis vibration + multi-axis vibration (based on the three-axis integrated machine, it can vibrate in multiple directions at the same time, and different frequencies and times can be set) |
| Max Load | 0—60kg |
| Table Size |
☑500×500mm, □750×750mm, □1000×1000mm, □1500×1500mm |
| Amplitude range | 0-5mm (varies with frequency), the device has an amplitude fine-tuning knob but no numerical display |
| Test frequency range | 5—3000Hz, adjustable |
| Maximum acceleration | 10G (no load), no value displayed on the device |
| Test functionality | Frequency modulation, fixed frequency, programmable, time control |
| Vibration waveform | Sine wave (half wave/full wave) |
| Frequency doubling(0.01Hz) | Low frequency-high frequency; High frequency-low frequency; Low frequency-high frequency-low frequency (loopable) |
| Logarithmic (0.01Hz) |
Lower frequency—upper frequency; Upper frequency—lower frequency; Lower frequency—upper frequency—lower frequency (loopable) |
| Time Control | Any time can be set (in seconds) |
| Power Supply | AC220V 50HZ 3KW |
| Cooling Mode | Air cooling |
| Net Weight | 180kg |
