Chamber Type UV Aging Test Machine ASR-UV200

China Chamber Type UV Aging Test Machine ASR-UV200 supplier

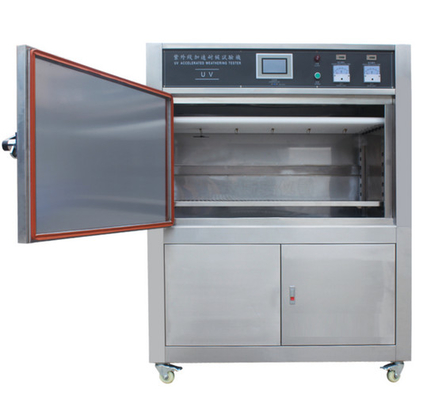

Large Image :  Chamber Type UV Aging Test Machine ASR-UV200

Product Details:

Brand Name: iqualitrol
Model Number: ASR-UV200

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: Plywood Box
Delivery Time: 20 Working Days
Payment Terms: T/T
Supply Ability: 10 Sets per Month
Detailed Product Description
Model: ASR-UV200 Humidity: 75%~95%RH
Temp Range: RT+10℃ ~ +70℃, Uniformity ±2℃, Fluctuation: ±0.5℃ Spraying: Automatic Sprinkler Head And The Water Pressure Is Adjustable



Chamber Type UV Aging Test Machine ASR-UV200



Technical Specifications:

1, Name Aging Test Machine
2, Model ASR-UV200
3, Inside Size 1000×700×300mm
4, Outside Size 1340×870×1690mm
5, Power supply AC220V 60Hz/5Hz
6, Power ≤5KW
Performance
1, Temp Range RT+10℃ ~ +70℃, uniformity ±2℃, fluctuation: ±0.5℃
2, Humidity 75%~95%RH
3, Temp of black board 40℃~65℃,
4, Lamp L=1200/40W, 8pcs
5, irradiance 0-1.2W/m2, (irradiatometer is optional)
6, irradiance area 1100*700*300mm
7, water slot Depth 25mm, auto control
8, wave length UVA: 315-400nm; UVB: 280-315nm
9, Test time 0~9999H adjustable
10, Temp control PID auto-tuning
11, controller Touch screen
12, function Adjustable test cycles for light, condensation and spraying
Environment

1, lab temp: 5℃~+35℃ (Average temperature in 24 hours≤28℃)

2, humidity: ≤85%RH,

3, power supply: 220V or 380V

6, The grounding resistance of the protective ground wire is less than 4Ω;

7, The user is required to configure an air or power switch of corresponding capacity for the equipment at the installation site, and this switch must be used independently for this equipment.

8, Do not place anything within 80cm of the machine.

Chamber Structure
1, Material Stainless steel or cold rolled plate spray painting
2, Inside material SUS304
3, water level Automatic water replenishment to prevent the heating tube from burning out and being damaged
4, Heating Inner tank water tank heating, fast heating and uniform temperature distribution;
5, wheel The bottom of the test box adopts high-quality fixed PU movable wheels
6, Drainage system The drainage system uses vortex and U-shaped sedimentation devices to drain water.
7, spray The spray type equipment is equipped with an automatic sprinkler head and the water pressure is adjustable.
8, Security protection If the door of the cabinet is opened while the lamp is on, the machine will automatically cut off the power supply to the lamp and automatically enter the equilibrium state to cool down to avoid any harm to the human body;
9, Over-temperature protection When the temperature inside the box is too high, the machine will automatically cut off the power supply and enter the equilibrium state to cool down.
Circuit control system

1, touch screen controller, accuracy ±0.1℃;

2, temp control apply P . I . D + S . S . R



3, Touch settings, digital and direct display;

4, automatic P.I.D calculation, which can reduce the inconvenience caused by manual setting;



5, Illumination and condensation can be controlled independently or in alternating cycles;



6, The independent control time of illumination and condensation and the time of alternating cycle control can be set arbitrarily within one thousand hours;



7, If an error occurs during operation or setting, a warning signal will be provided;

Heating System

1, Adopt U-shaped titanium alloy high-speed heating electric heating tube;



2, Temperature control and lighting are completely independent systems;



3, The temperature control output power is calculated by a microcomputer to achieve high precision and high efficiency in power consumption;



4, The heating system has an over-temperature protection function;



5, The temperature of the black aluminum plate is controlled by an intelligent temperature controller, and the output power is calculated by a microcomputer and PID self-tuning. The monitoring adopts a standard Pt100 blackboard temperature sensor;



6, The water tank is located at the bottom of the box, with a built-in electric water heater. During the cycle test, there is a test section called dark condensation process, which requires the box to produce high-temperature saturated water vapor. When the water vapor encounters the relatively cold sample surface, it will condense on the sample surface.
