| MISD-205A: | Clamping Table Type | MISD-205B: | Pillar Lifting Type |
|---|---|---|---|
| MISD-205C: | With Support Base | Magnification: | Standard 7x-45x |

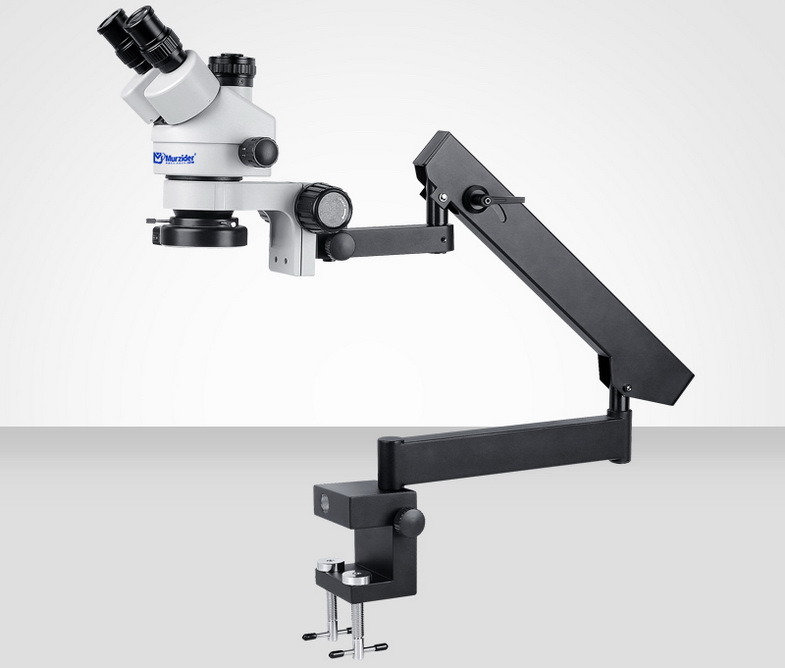

Articulated Arm Universal Stand MISD-205 series Stereo Microscope
Brief Introduction:
The iqualitrol MISD205 series stereo microscopes adopt an articulated arm universal stand, allowing the microscope perform wide-range, large-direction adjustments, thus solving the inconvenience caused by ordinary microscopes due to insufficient working distance and limited adjustment directions.
The MISD205 series articulated arm stereo microscopes offer various mounting options, including clamp-on, column-mounted, and base-mounted, making them suitable for a wide range of applications.
Technical Specifications:
| Eyepiece | WF10X/20mm, optional WF20X/10mm |
| Zoom lens | 0.7x-4.5x |
| Magnification | 7x-45x |
| Observation Head | Trinocular, Hinged 45° tilt, 360° rotation, 50/50 light splitting, suitable for transmitted light photography |
| Working distance | Standard 100mm,with optional 0.5x can get max 165mm |
| Adjust range | pillar height 400,Horizontal 770mm |
| Pupil distance range | Range 54-76mm |
| diopter | Bilateral visual accommodation ±5° |
| Base | Clamp type:98*80*116mm |
| With base type:260*280*15mm | |
| Focusing Bracket | The focus bracket handwheel has adjustable tightness and a lifting range of 50mm. |
| Base clamping | 50mm |
| Lighting system | Adjustable brightness LED light source |
