| Model: | IStereo-SZ66 | Magnification: | Standard 6.8X-45X, Max 180X |
|---|---|---|---|
| Optical System: | Galileo Optical System, Left And Right Parallel Optical Path | Focusing System: | Coaxial Coarse And Fine Focusing System, Coarse Stroke 240mm |
Parallel Optical Path

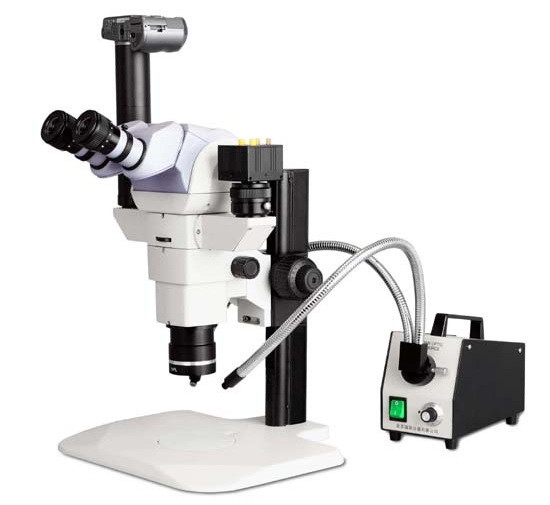

Stereo Microscope iqualitrol iStereo-SZ66 with Magnification 6.8x-45x
Technical Specifications:
| Item | Specification | Outfits | Order No. | |
| Objective Body |
Galileo optical system, Left and right parallel optical path, Non-coaxial image, Zoom range: 0.68-4.5X |
● | SZ101101 | |
| Tube |
Head incline is adjustable from 0°-30°, 180° outside rotation and higher eye point to 80mm, Eyepiece locked ring |
● | SZ102201 | |
| Focusing System |
Coaxial coarse and fine focusing system, Coarse stroke 240mm, Fine division 0.002m |
Without illumination | ● | SZ109101 |
|
With 6V/15W halogen reflecting illumination |
○ | SZ109102 | ||
|
Eyepiece (Diopter Adjustable) |
WF10X/23mm | ● | SZ-10X | |
| WF10X/23mm (Reticule, X axis: 0.1mm/100 division) | ○ | SZ-10X101 | ||
| WF10X/23mm (Reticule, X axis: 0.05mm/200 division) | ○ | SZ-10X102 | ||
| WF10X/23mm (Grid, X axis: 0.1 X 0.1mm/100 division) | ○ | SZ-10X103 | ||
| WF16X/14mm | ○ | SZ-16X | ||
| WF20X/12mm | ○ | SZ-20X | ||
| WF25X/9mm | ○ | SZ-25X | ||
| WF30X/8mm | ○ | SZ-30X | ||
| Objective | 0.3X achromatic objective (W.D=328.93mm) | ○ | SZ-0.3X | |
| 0.5X achromatic objective (W.D=197.19mm) | ○ | SZ-0.5X | ||
| 0.7X achromatic objective (W.D=148.00mm) | ○ | SZ-0.7X | ||
| 1X achromatic objective (W.D=93.87mm) | ● | SZ-1.0X | ||
| 1X plan achromatic objective (W.D=84.92mm) | ○ | SZ-1.0XPL | ||
| 1.5X achromatic objective (W.D=46.69mm) | ○ | SZ-1.5X | ||
| 2X achromatic objective (W.D=34.04mm) | ○ | SZ-2.0X | ||
| 2.5X achromatic objective (W.D=22.53mm) | ○ | SZ-2.5X | ||
| Image Output Unit | One side image output unit | ○ | SZ-TR | |
| Double sides image output unit | ○ | SZ-TRS | ||
| Coaxial Illumination Unit | 1W/LED illumination unit | ○ | SZ-TZLED/1W | |
|
Single soft optical fiber 5W/LED cold light unit, Fiber length: 550mm, Light passed diameter: 8mm |
○ | SZ-TZLED/5W | ||
| Base | Standard base (without illumination) | ● | SZ108102 | |
|
Transmitting illumination base, output: 3W/LED adjustable clod lighting |
○ | TS106104 | ||
| C-mount | 0.35X C-mount | ○ | SZ-0.35XC | |
| 0.5X C-mount | ○ | SZ-0.5XC | ||
| 1X C-mount | ○ | SZ-1XC | ||
| Adaptor for Digital Camera | ○ | |||
|
Optical Fiber Cold Lighting Unit (5W/LED) |
Ring soft optical fiber cold lighting unit, Fiber length: 550mm, Light passed diameter: 8mm |
○ | LGY-R/LED | |
|
Double hard optical fibers cold lighting unit, Fiber length: 550mm, Light passed diameter: 8mm |
○ | LGY-D/LED | ||
|
Single soft/hard optical fiber cold lighting unit, Fiber length: 550mm, Light passed diameter: 8mm |
○ | LGY-S/LED | ||
|
Optical Fiber Cold Lighting Unit (150W/Halogen) |
Ring soft optical fiber cold lighting unit, Fiber length: 550mm, Light passed diameter: 8mm |
○ | LGY-R | |
|
Double hard optical fibers cold lighting unit, Fiber length: 550mm, Light passed diameter: 8mm |
○ | LGY-D | ||
|
Single soft/hard optical fiber cold lighting unit, Fiber length: 550mm, Light passed diameter: 8mm |
○ | LGY-S | ||
Note: “●”In Table Is Standard Attachment. “○” Is Optional Accessories
