|Eyepiece:||WF10X/22||Objective:||5x, 10x, 20x, 50x, 100x|
|Focus:||Coaxial Coarse/Fine Focus||Illumination:||12V/50W Halogen Lamp|
|Stage:||Travel Range: 40×40mm||Nosepiece:||Quintuple(Backward Ball Bearing Inner Locating)|
stereo inspection microscope,
stereo dissecting microscope

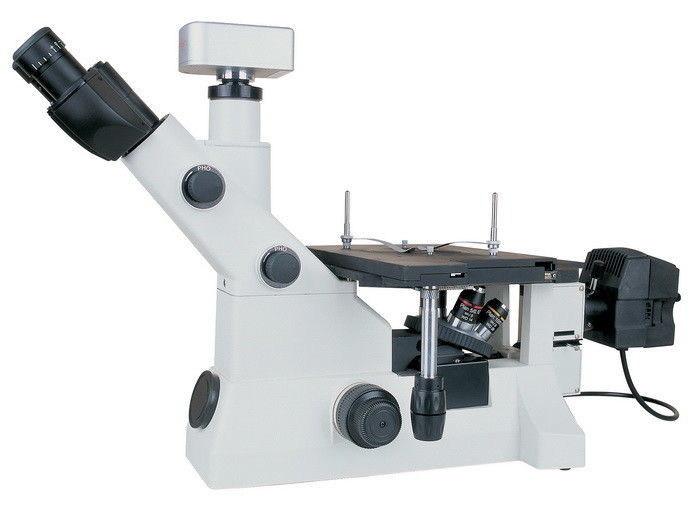

Inverted Trinocular Digital Metallurgical Microscope with Infinity Optical System
iMet-R330 inverted metallurgical microscope adopted high quality infinity optical system, and equipped with bright and dark field long working distance, infinite plan achromatic objective objectives, multi-optical system designed to support both binocular tubes observation and digital camera devices observation.
iMet-R330 inverted microscope can be widely applied for studying the microstructure of metal; It can conduct observation and photography in bright field, dark field, polarized light, differential interference. But also simultaneously measured and analyzed when it was equipped with special software.
Inverted metallurgical microscopes are used in the engineering and manufacturing processes to look for metal fatigue, corrosion, fractures and ruptures that resulted from stress, cracks and hydrogen embrittlement.
Inverted metallurgical microscopes are used when a standard upright metallurgical microscope might not have enough working room for large parts. Some applications for the inverted metallurgical microscope include: electronics, telecom, cast iron nodularity and flake analysis, metallurgy, grain sizing, surface examination, mobile phone manufacturing, metal manufacturing, antennae production and shavers and watch production.
(Equipped with bright & dark field objectives)
|PL L5X/0.12 BD / WD:10mm|
|PL L10X/0.25 BD / WD:10mm|
|PL L20X/0.40 BD / WD:5mm|
|PL L50X/0.70 BD / WD:1.3mm|
|PL L100X/0.90 BD / WD:0.7mm|
|Eyepiece tube||Binocular, Inclination angle is 30deg|
|Splitting ratio: Observation 80%,Photo 20%;
Observation 100%,Photo 100%
|Focus system||Coaxial coarse/fine focus,with tension adjustable-minimum division of fine focusing is 2um|
|Travel (From stage to focus plane ):upward 1mm,
|Nosepiece||Quintuple(Backward ball bearing inner locating)|
|Mechanical Stage||Travel Range: 40×40mm; Size: 226×178mm|
|Illuminator||12V/50W Halogen Lamp Center and Brightness adjustable|
|Polarizer and analyzer|
|Color Filter||Built-in Green, Blue, Yellow, Gray and ground glass|
