| Rotation Speeds: | 3 Steps 700/900/1400rpm | Control Of Disc: | Dual-disc Design, Grinding And Polishing Can Be Operated Independently |
|---|---|---|---|
| Main Structure: | Corrosion-prone Parts Made Of Stainless Steel | Cabinet Storage: | Various Consumables And Samples For Convenient Use |
| Cooling Mode: | With Cooling Water Pipe For Fast Cooling | Functions: | Rough Grinding, Fine Grinding, And Polishing |

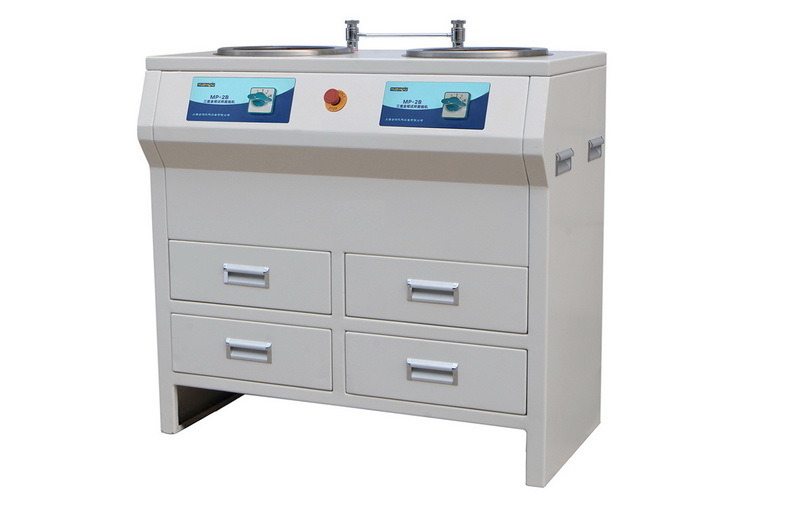

Low Noise Three Speeds Metallographic Grinding Polishing Machine MP-2C with Cabinet
Brief Introduction:
The iqualitrol MP-2C three-speed metallographic sample grinder and polisher features an independently controlled dual-disc system for grinding and polishing.
The main structure of MP-2C was made of thick plates, making it sturdy, stable, and durable; the motor operates quietly, and the grinding discs rotate smoothly.
MP-2C adopts cabinet structure, allowing storage of various consumables and samples for convenient use.
Equipped with a cooling water pipe, the rotation direction can be adjusted for wet grinding. During use, simply replacing the sandpaper and polishing cloth enables completion of all procedures for rough grinding, fine grinding, and polishing of various samples.
Technical Specifications:
| Model | MP-2C |
| Wheel Disc Diameter | 230mm |
| Sandpaper Diameter | 230mm |
| 3 Speeds | 700/900/1400rpm |
| Power | 0.2/0.25/0.37kW |
| Power Supply | AC380V/50Hz/3A |
| Dimension | 900×530×950mm |
| Weight | 110kg |
