| Function: | Simulates The Comprehensive Combination Of Light, Heat, And Water Conditions Of Outdoor Climate | Automatically Control: | Light Irradiance, Working Chamber Temperature, Sample Rack Temperature, And Relative Humidity |
|---|---|---|---|
| Light Source: | Solar-type Carbon Arc Lamps | Working Dimensions: | 1100*1100*1100mm |
| Humidity Range: | When Temperature 63±3℃, The Humidity Is 50±5% | Spray Water Volume: | Spray Pressure Of 1.0kgf/cm2 Is 2.10 ± 0.10L/min |
PLC Control Climate Testing

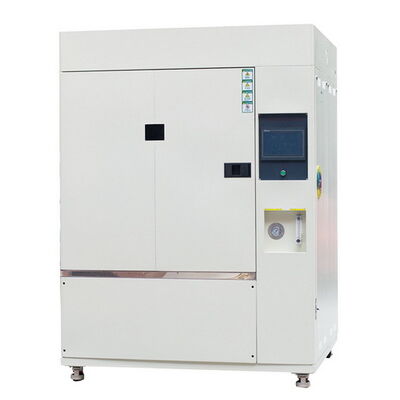

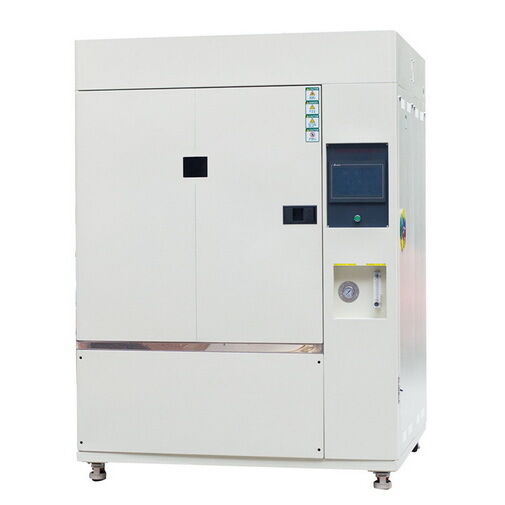

Carbon Arc Lamp Weather Resistance Chamber SSC-1300
Brief Introduction:
The iqualitrol weather resistance test chamber for carbon arc lamps mainly uses solar-type carbon arc lamps as the light source.
By changing the temperature (sample temperature, working chamber temperature), relative humidity, rainfall, etc., it simulates the comprehensive combination of light, heat, and water conditions of outdoor climate test chambers, and conducts artificial aging tests on the photochemical and mechanical properties of the tested materials.
Main Features:
Using PLC touch screen controller, the control is stable, and the main control parameters are light irradiance, working chamber temperature, sample rack temperature, and relative humidity, which can be automatically controlled by closed loop.
Technical Specifications:
| Commodity | Carbon arc Lamp Weather Resistance Test Chamber |
| Model | SSC-1300 |
| Studio Dimensions(W*D*H) | 1100*1100*1100mm |
|
Exterior Dimensions (W*D*H) |
1300*1400*2050mm (The actual product shall prevail!) |
| Use light source | SUNSHINE CARBON-ARC |
| Test time per cycle |
60 hours, 4 groups of carbon rods are used each time |
| Temperature and humidity range: subject to the Black panel temperature | |
| Temperature Range |
40~70℃, black disk thermometer is 63±3℃ or 83±3℃ |
| Humidity Range | When the temperature of the black disk thermometer is 63±3℃, the humidity is 50±5%. |
| Environmental Conditions |
Room temperature: 25±3℃, relative humidity: 65±20% |
| Temperature control method | Electric control gate, automatic adjustment of intake and exhaust, balanced control of temperature. |
| Wet control mode | The immersion type electric heater produces water vapor and controls the humidity balance. |
| Simulation of rainfall water spray cycle control | Spray time can be set |
|
Spray for 18 minutes every 120 minutes (general type, rainfall cycle) |
|
|
Spray for 12 minutes every 60 minutes (rainy type, rainfall cycle) |
|
| No spray (dry type, rainfall cycle) | |
| Spray water volume | The total water volume of the nozzle at the spray pressure of 1.0kgf/cm2 is 2.10 ± 0.10L/min |
| Customer water supply | 10E1 water pressure 1.5~3.0kgf/cm2 |
| Water Quality | PH6.0~8.0, use hard water softening or pure water device when necessary |
| Structure and material | The test tank is made of stainless steel plate SUS304#, and the outer shell is made of steel plate painted |
| The test tank door is equipped with an ultraviolet protection window | |
| The insulation layer is made of heat-resistant PU foam | |
| Rainfall cycle time control | Power failure memory device (0-999min) with flow control: two-stage pressure regulation, pressure gauge and flowmeter (0-3.01/min) |
