Product Details:
Payment & Shipping Terms:
|
| Functions: | Brinell, Rockwell, And Vickers Hardness Tests, Features Multiple Levels Of Test Forces | Application: | Simple To Operate, Highly Sensitive, Convenient To Use, Provides Stable Readings, And Offers A Wide Measurement Range |
|---|---|---|---|
| Data Output: | Built-in Printer And Can Optionally Be Connected To A Computer Via A USB Data Cable Terminal To Export Measurement Reports | Conversion: | Allows Mutual Conversion Between Hardness Values Of Different Scales |
| Force Control: | Closed-loop Control Applies The Test Force, With An Accuracy Up To 0.5% Via A Force Sensor | Measurement: | High-definition Optical System To Make Reading Observations Clearer And Reduce Errors |

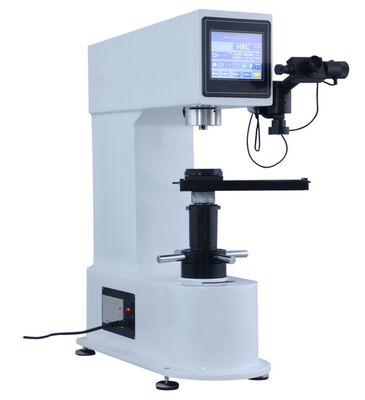

Touch Screen Hardness Tester
CHBRV-187.5S with Max Force 250Kgf Support Rockwell Brinell Vickers Scales
Brief Introduction:
The iqualitrol touch screen digital universal hardness tester has novel appearance, complete functions, convenient operation, clear and intuitive display and stable performance.
It can perform Brinell, Rockwell and Vickers hardness test, which can meet a variety of hardness testing needs. It has the characteristics of high accuracy, simple operation, high sensitivity, convenient operation and stable value.
Equipped with a built-in printer, and optional RS232 cable can be connected to a computer via hyper terminal, or USB disk to export measurement reports.
Technical Specifications:
| Model | CHBRV-187.5S |
| Brinell Scales |
HBW2.5/31.25, HBW2.5/62.5, HBW5/125, HBW2.5/187.5, HBW5/250 |
| Rockwell Scales | HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK, HRL, HRM, HRP, HRR, HRS, HRV |
| Vickers Scales | HV3, HV5, HV10, HV20, HV30, HV50, HV100 |
| Test force |
Rockwell: 60, 100, 150Kgf (588, 980, 1471N) |
|
Brinell: 306.5, 612.9, 1226, 1839, 2450N (31.25, 62.5, 125, 187.5, 250Kgf) |
|
|
Vickers: 29.4, 49.03, 98.07, 196.1, 294.2, 490.3, 980.7N (3, 5, 10, 20, 30, 50, 100Kgf) |
|
| Magnification | 100X, 50X, 25X |
| Maximum height of specimen | Rockwell 180mm, Vickers and Brinell 165mm |
| Indenter-outer wall distance | 165mm |
| Hardness test range |
Rockwell: 20-88HRA, 20-100HRB, 20-70HRC Brinell: 5-650HBW Vickers: 10-3000HV |
| Hardness reading | Automatic calculation |
| power supply | AC220+5%,50~60Hz |
| Dimensions | 550×240×720mm |
| Net weight | 85kg |
