Metal Hardness Testing Machine , Portable Vickers Hardness Tester Throat Max 130mm

China Metal Hardness Testing Machine , Portable Vickers Hardness Tester Throat Max 130mm supplier

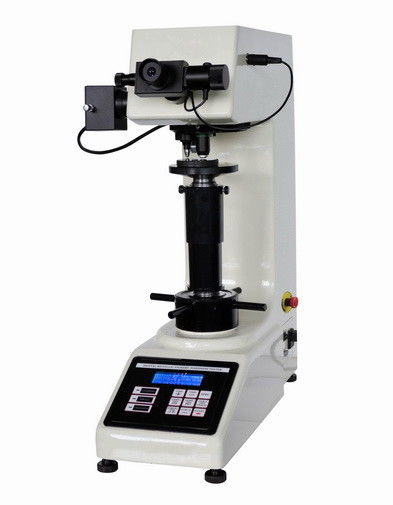

Large Image :  Metal Hardness Testing Machine , Portable Vickers Hardness Tester Throat Max 130mm

Product Details:

Place of Origin: Dongguan/China
Brand Name: Q1-Test
Certification: CE
Model Number: iVick-478MP

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Box
Delivery Time: 20 Working Days
Payment Terms: T/T
Supply Ability: 20 Sets per Month
Detailed Product Description
Turret: Motorized Turret Height: Max Specimen Height 170mm
Data Output: Built-in Mini Printer And RS232 Illumination: Halogen Lamp
Throat: Max 130mm Magnification: 100x, 200x
Highlight:

digital hardness tester

,

portable metal hardness tester



50Kgf Digital Vickers Hardness Machine With Motorized Turret And Mini Printer



Brief Introduction:



iVick-478MP Digital Vickers hardness tester adopts load cell control system, improves the precision of the test force and the repeatability and stability of the indicating value.

With digital measuring eyepiece, no need for checking the table or inputting the diagonal of indentation, it can directly show the test force, indentation length, dwell time, test numbers, conversion scale, date and time.

As long as press the eyepiece button after measuring the indentation length, it can automatically get the hardness value and shows on the screen.

Available to install optional LCD video measuring device and CCD image automatic measuring system.

Application range:
Suitable for ferrous metal, non-ferrous metals, IC thin sections, coatings, ply-metals; glass, ceramics, agate, precious stones, thin plastic sections etc.; hardness testing such as that on the depth and the trapezium of the carbonized layers and quench hardened layers.

Technical Specification:

Model iVick-478MP
Test Force kgf 1kgf, 2kgf, 2.5kgf, 3kgf, 5kgf, 10kgf, 20kgf, 30kgf, 50kgf
N 9.80N, 19.6N, 24.5N, 29.4N, 49N, 98N, 196N, 294N, 490N
Test Range 1HV~2967HV
Loading Method Automatic (Loading/Dwell/Unloading)
Turret Motorized Turret
Data Output Built-in Mini Printer and RS232 Interface
Objective 10x, 20x
Eyepiece 10x
Total Magnification 100x, 200x
Resolution 0.25μm, 0.125μm
Dwell Time 0~60s
Light Source Halogen Lamp
Max. Height of Specimen 170mm
Throat 130mm
Power Supply AC220V/50Hz/1Ph, AC110V/60Hz/1Ph
Execute Standard ISO 6507, ASTM E92, JIS Z2244, GB/T 4340.2
Dimension 530×280×630mm, Packing Dimension:620×450×740mm
Weight Net Weight: 35kg, Gross Weight: 47kg


Packing List:

Name Qty Name Qty
Instrument Main Body 1 set 10×Digital Measuring Eyepiece 1 pc
Diamond Vickers Indenter 1 pc 10×,20×Objective each 1 pc
Big Plane Test Table 1 pc V-shaped Test Table 1 pc
Power Cable 1 pc Level 1 pc
Horizontal Regulating Screw 4 pcs Halogen Lamp12V,15~20W 1 pc
Fuse1A 2 pcs Screw Driver 1 pc
Inner Hexagon Spanner 2.5mm 1 pc Hardness Block 400~500 HV5 1 pc
Hardness Block 700~800 HV30 1 pc Anti-dust Cover 1 pc
Instruction Manual 1 copy





The Vickers hardness test method consists of indenting the test material with a diamond indenter, in the form of a right pyramid with a square base and an angle of 136 degrees between opposite faces subjected to a load of 1 to 100 kgf. The full load is normally applied for 10 to 15 seconds.



The two diagonals of the indentation left in the surface of the material after removal of the load are measured using a microscope and their average calculated. The area of the sloping surface of the indentation is calculated. The Vickers hardness is the quotient obtained by dividing the kgf load by the square mm area of indentation.



When the mean diagonal of the indentation has been determined the Vickers hardness may be calculated from the formula, but is more convenient to use conversion tables.



Metal Hardness Testing Machine , Portable Vickers Hardness Tester Throat Max 130mm



The Vickers hardness should be reported like 800 HV/10, which means a Vickers hardness of 800, was obtained using a 10kgf force. Several different loading settings give practically identical hardness numbers on uniform material, which is much better than the arbitrary changing of scale with the other hardness testing methods.



The advantages of the Vickers hardness test are that extremely accurate readings can be taken, and just one type of indenter is used for all types of metals and surface treatments. Although thoroughly adaptable and very precise for testing the softest and hardest of materials, under varying loads, the Vickers machine is a floor standing unit that is more expensive than the Brinell or Rockwell machines.
