Built - In Software Hardness Testing Machine For Ferrous Metal / Glass / Ceramics

China Built - In Software Hardness Testing Machine  For Ferrous Metal / Glass / Ceramics supplier

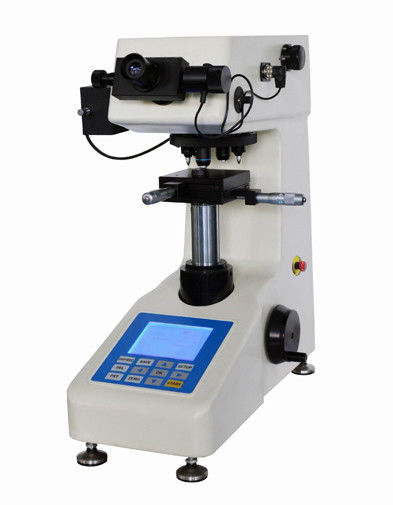

Large Image :  Built - In Software Hardness Testing Machine For Ferrous Metal / Glass / Ceramics

Product Details:

Place of Origin: Dongguan/China
Brand Name: Q1-Test
Certification: CE
Model Number: iVick-458ST

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Box
Delivery Time: 20 Working Days
Payment Terms: T/T
Supply Ability: 10 Sets per Month
Detailed Product Description
Height: Max Specimen Height 185mm Turret: Automatic Turret
Objective: 10x (Observe), 40x (Measure) Dwell Time: 0 - 60 Seconds, Adjustable
Illumination: Halogen Lamp Throat: Max Horizontal Space 130mm
High Light:

digital hardness tester

,

hardness testing equipment



Digital Micro Vickers Hardness Tester Micro Hardness Testing Machine With Built - In Software



Brief Introduction:



iVick-458ST is a new generation of Micro Vickers hardness tester adopts the integrated design of hardness tester and panel computer, all the testing parameters can be selected on the panel computer.



Touch screen makes the operation quickly and conveniently. CCD image acquisition system can show dynamic indentation image, lock the image and automatically get the Vickers hardness value with high precision and stability, and avoid the human errors.



iVick-458ST adopts the integrated design of hardness tester and panel computer, with Windows 7 operating system, it has all functions of computer and can be connected to the output devices such as external screen and printer;



iVick-458ST equips with motorized turret between the objective and the indenter;



The lifting screw of iVick-458ST adopts worm and gear structure with smooth transmission;



iVick-458ST comes with the function of hardness scale conversion;



Automatically save the measuring data, generate the hardness-depth curve and save as WORD or EXCEL report;



Digital micrometer X-Y test table makes measurement more precise and realizes the fully automation of Micro Vickers hardness testing with optional motorized X-Y test table.



Application range:

Suitable for ferrous metal, non-ferrous metals, IC thin sections, coatings, ply-metals; glass, ceramics, agate, precious stones, thin plastic sections etc.; hardness testing such as that on the depth and the trapezium of the carbonized layers and quench hardened layers.



Technical Specification:

Model iVick-458ST
Test Force gf 10gf, 25gf, 50gf, 100gf, 200gf, 300gf, 500gf, 1000gf
N 0.098N, 0.246N, 0.49N, 0.98N, 1.96N, 2.94N, 4.90N, 9.80N
Test Range 1HV~2967HV
Test Mode HV/HK
Loading Method Automatic (Loading/Dwell/Unloading)
Turret Automatic Turret
Computer CPU: Intel I3, Memory: 2G, SSD: 32G
CCD Pixel 1.30 Million
Conversion Scale HV, HK, HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRK, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HS, HBW
Hardness Reading Indentation Displaying and Automatic Measuring on Touch Screen
Data Output WORD or EXCEL Report with Curve Chart
Objective 10x (Observe), 40x (Measure)
Total Magnification 100x, 400x
Resolution 0.0625μm
Dwell Time 0~60s
Light Source Halogen Lamp
Motorized X-Y Test Table Size: 100×100mm; Travel: 25×25mm; Resolution: 0.01mm
Max. Height of Specimen 185mm
Throat 130mm
Power Supply AC220V/50Hz/1Ph, AC110V/60Hz/1Ph
Execute Standard ISO 6507, ASTM E384, JIS Z2244, GB/T 4340.2
Dimension 560×335×675mm, Packing Dimension: 650×380×960mm
Weight Net Weight: 48kg, Gross Weight: 62kg



Packing List:

Name Qty Name Qty
Instrument Main Body 1 set Diamond Micro Vickers Indenter 1 pc
10x, 40x Objective each 1 pc Weights 6 pcs
Weight Axis 1 pc Cross Test Table 1 pc
Flat Clamping Test Table 1 pc Thin Specimen Test Table 1 pc
Filament Clamping Test Table 1 pc Horizontal Regulating Screw 4 pcs
Level 1 pc Power Cable 1 pc
Fuse 1A 2 pcs Halogen Lamp 12V/15~20W 1 pc
Screw Driver 2 pc Hardness Block 400~500 HV0.2 1 pc
Hardness Block 700~800 HV1 1 pc Anti-dust Cover 1 pc
Usage Instruction Manual 1 copy





Vickers hardness test method:



The Vickers hardness test method consists of indenting the test material with a diamond indenter, in the form of a right pyramid with a square base and an angle of 136 degrees between opposite faces subjected to a load of 1 to 100 kgf. The full load is normally applied for 10 to 15 seconds.



The two diagonals of the indentation left in the surface of the material after removal of the load are measured using a microscope and their average calculated. The area of the sloping surface of the indentation is calculated. The Vickers hardness is the quotient obtained by dividing the kgf load by the square mm area of indentation.



When the mean diagonal of the indentation has been determined the Vickers hardness may be calculated from the formula, but is more convenient to use conversion tables.

Built - In Software Hardness Testing Machine  For Ferrous Metal / Glass / Ceramics

The Vickers hardness should be reported like 800 HV/10, which means a Vickers hardness of 800, was obtained using a 10kgf force. Several different loading settings give practically identical hardness numbers on uniform material, which is much better than the arbitrary changing of scale with the other hardness testing methods.



The advantages of the Vickers hardness test are that extremely accurate readings can be taken, and just one type of indenter is used for all types of metals and surface treatments. Although thoroughly adaptable and very precise for testing the softest and hardest of materials, under varying loads, the Vickers machine is a floor standing unit that is more expensive than the Brinell or Rockwell machines.



Built - In Software Hardness Testing Machine  For Ferrous Metal / Glass / Ceramics
