Force Accuracy: | Within ±0.5% | Speed: | 0.5~500mm/min |
---|---|---|---|
Stroke: | Max 1000mm | Space: | Width 400mm |
Stop Test: | Upper And Bottom Limit Setting | Motor: | AC Servo Motor |
Highlight: | universal material tester,tensile testing machine |

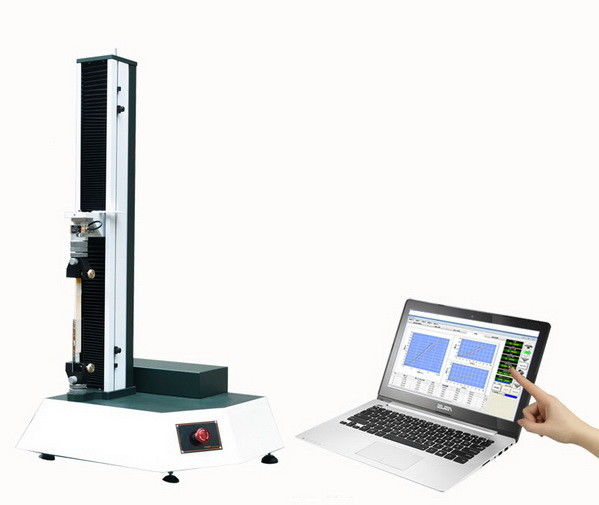

Software Controlled Material Testing Machine with AC Servo Motor Stroke 1000mm
Brief Introduction:
iUTM-1176 is suitable for various materials, including finished goods and semi-finished goods. Take differences grippers can test tensile strength, tensile elongation, compression, bending, puncture, splitting, tearing, shearing and adhesive force etc.
Software Features:
Use windows system, all parameter setting by click, easy to operate.
Take single screen to operate, don’t take screen switch.
Include Simplified Chinese, Traditional Chinese and English 3 kinds language, easy to change.
Operator setting test table form.
Can call out test data in main screen.
Can compare multi-curves data in same time. Include multi-units of measurement, can switch metric system and British system.
Automatic homing feature, Autocorrect feature, Test methods are automatically defined functions, Test data calculate and analysis functions.
Auto magnification functions, to get suitable graph. can test tensile strength, tensile elongation, compression, bending, puncture, splitting, tearing, shearing and adhesive force etc.
Technical Specifications:
Model Type | iUTM-1176 |
Capacity | 2,5,10,20,50,100,200,500kgf (Select one) |
Software | Windows2000/xp test software |
Loading precision | Within ±0.5% |
Strength parses | 1/500,000 |
Test range | 0.5~100%F.S |
Deformed precision | Within ±0.5% |
Test speed range | 0.5~500mm/min,adjustable |
Max test stroke | Max 1000mm, include grippers length |
Test space width | 400mm |
Unit switch | Include multi-units of measurement, can switch metric system and British system. |
Stop test | Upper and bottom limit setting, emergency stop, force and elongation setting stop, specimen break stop. |
Special features | Capable to perpetual extension, holding pressure and fatigue testing. |
Option purchase | PT-211 two points elongation gripper, other test grippers |
Dimensions | 76×44×150cm(W×D×H) |
Weight | About 70kg |
Motor | AC servo motor |
Power | 1PH,AC220V,50Hz,10A |
