| Test Software: | Support Automatically Complete Parameter Setting, Working State Control, Data Acquisition And Processing Analysis, Result Display And Printing Output | High-precision Sensor: | Effective Measurement Range Of 0.5%~100%F. S, The Combined Accuracy Was Better Than 0.085% |
|---|---|---|---|
| AC Servo Motor: | High Transmission Efficiency, Stable Transmission, Low Noise, Speed Accuracy Can Be Controlled Within ± 0.2% | Safety Device: | Safety Setting Of Upper And Lower Limits, Emergency Stop Key |
Computer Type

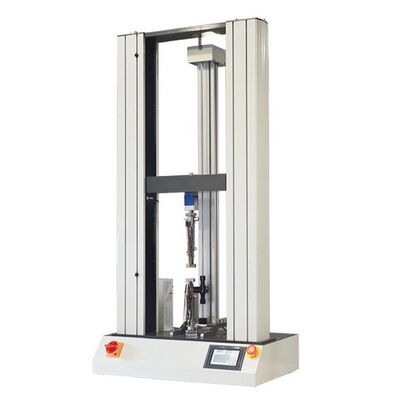

Double Column Servo Tensile Compression Testing Machine iUTM-1166
Brief Introduction:
The iqualitrol iUTM-1166 computer-type servo pull-pressure testing machine is suitable for aerospace, petrochemical, machinery manufacturing, metal materials and products, wire and cable, rubber plastic, paper and color printing packaging, adhesive tape, bags and handbags, textile fiber, food, pharmaceutical and other industries.
The iqualitrol iUTM-1166 can test the physical properties of various materials and finished products, semi-finished products, choose a variety of different fixtures can be done tensile, compression, pull, pressure, bending, tearing, stripping, adhesion, shear and other tests.
Technical Specifications:
| Model | iUTM-1166 |
| Capacity Selection | 2, 5, 10, 20, 50, 100, 200, 500, 1000, 2000kgf |
| Accuracy of measuring force | Better than ± 0.5% |
| Detective Resolution | 1/500,000 |
| Effective force measurement range | 0.5~100%F.S |
| Accuracy of deformation value | Better than ± 0.5% |
| Test speed range | 0.05~1000mm/min, can be set |
| Max Stroke | Maximum 1000mm, without fixture |
| Effective test space | Front and back, left and right 400mm |
| Unit Switch | Multiple units of measurement, including international units |
| Downtime Method | Safety setting of upper and lower limits, emergency stop key, program force and elongation setting, specimen damage sensing |
| Specific Function | Pull, pressure and fatigue test can be done |
| Standard Delivery | 1 standard fixture, 1 set of software and data cable, 1 equipment power cable, 1 copy of operation manual, 1 product certificate, 1 product warranty card |
| Optional | computer, printer, PT-211 two-point extension fixture, various test fixtures |
| Machine Size | Approx. 760*460*1600mm (WDH) |
| Machine Weight | About 160kg |
| Motive Power | AC servo motor |
| Power Supply | 1 PH, AC220V, 50Hz, 10A, or specified |
