Product Details:
Payment & Shipping Terms:
|
| Model: | ASR-5600 | Test Load: | 50 ~ 1000g |
|---|---|---|---|
| Test Speed: | 5 To 60 Times / Min | Test Trip: | 10 ~ 60mm (manually Adjustable) |

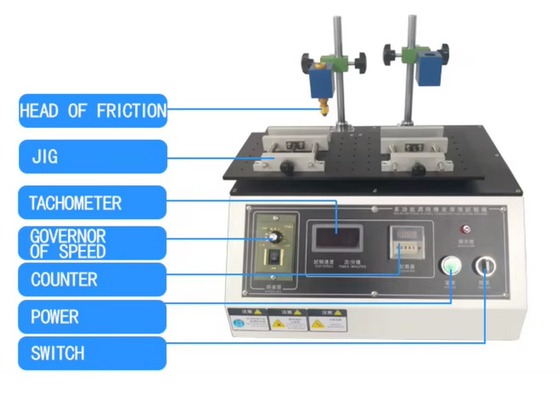

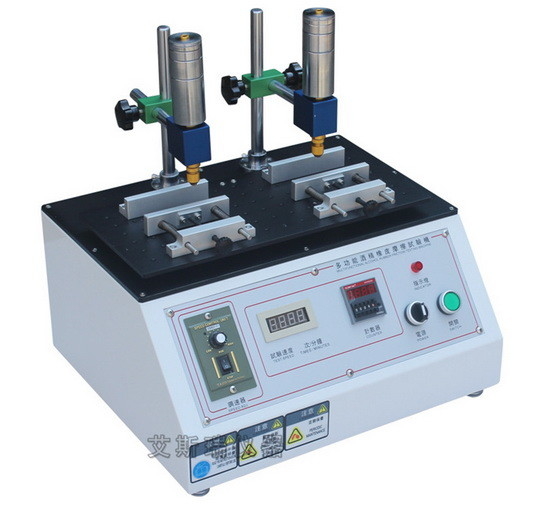

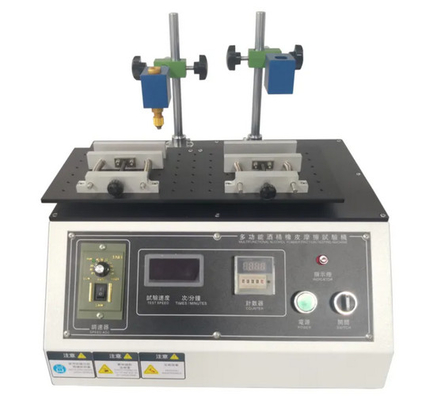

Plastic Abrasion Tester Textile Friction Testing Machine
Alcohol Wear Test Equipment ASR-5600
Application:
The iqualitrol coating wear resistance tester was used for TV remote control button silk screen, plastic, mobile phone shell, headphone shell silk screen, battery silk screen, keyboard printing, wire screen printing, leather and other types of electronic products on the surface of the injection, silk screen printing Wear, to assess the degree of wear.
Technical Specifications:
| Test station | two |
| Test load | 50 ~ 1000g |
| Test trip | 10 ~ 60mm (manually adjustable) |
| Test speed | 5 to 60 times / min (knob adjustment, LCD display) |
| Test counter | 0 ~ 99999999 times (can be preset, LCD display) |
| Load weight | 50,100,200,300,500g each two |
| Friction medium | standard cotton multi-block, eraser one, China 2B pencil two |
| Alcohol or other liquid friction with a rule | two |
| Rubber rubbing friction with a rule | two |
| Pencil friction with a rule | two |
| Size (L × W × H) | 500 × 450 × 600mm |
| Clip size | 30 * 20 * 5CM |
| Work power | AC220V, 50HZ |
