Measure Mode: | By Brinell Automatic Software | Resolution: | 0.005mm |
---|---|---|---|
Hardness: | Range 8~650HBW | Horizontal: | Space 135mm |
Force Control: | By High Precision Sensor | Application: | Almost Any Metallic Material |
Highlight: | digital hardness tester,hardness testing equipment |

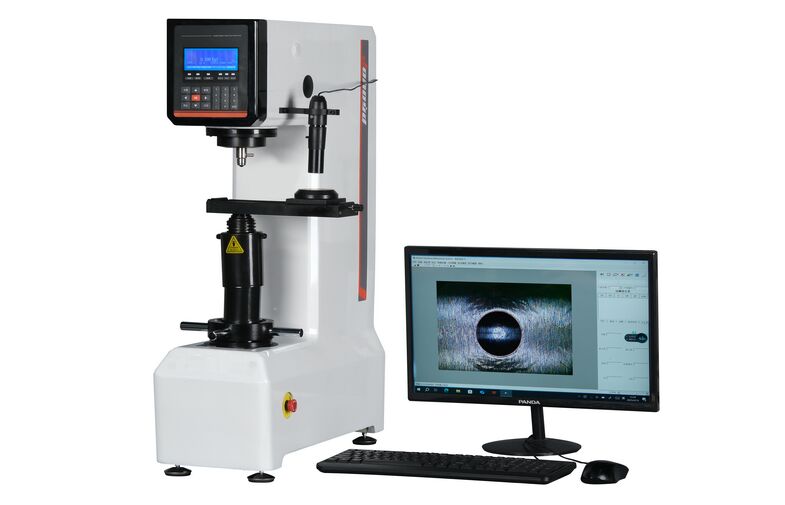

Electronic Brinell Hardness Tester with CCD Camera and Software Measure System
Features:
1, High accuracy compression sensor to feedback and the CPU control system to automatically compensate the test force lost during the testing.
2, 10 Steps Testing force for wider application;
3, Equips with stepping motor to realize automatic loading, dwell and unloading, with much lower noise during testing;
4, Die casting metal shell, stable structure, able to work under rugged environment;
5, Surface with car baking process, strong resistance of scratches, still brightness after years using;
Technical Specifications:
Model | HBE-3000S |
Brinell Scales | HBW2.5/62.5, HBW2.5/187.5, HBW5/125, HBW5/750, HBW10/1000, HBW10/1500, HBW10/3000, HBW10/250, HBW10/500, HBW10/100 |
Test Force | 62.5kgf(612.9N), 100kgf(980.7N), 125kgf(1226N), 187.5kgf(1839N), 250kgf(2452N), 500kgf(4903N),750kgf(7355N), 1000kgf(8907N), 1500kgf(14710N),3000kgf(29420N) |
Vertical Space | 220mm |
Resolution | 0.005mm |
Dwell Time | 0~60s |
Hardness Range | 8~650HBW |
Magnification | 20X |
Standards | GB/T231.2, JJG150 |
Horizontal Space | 135mm |
Hardness Reading | By Software |
Power Supply | AC220+5%,50~60Hz |
Dimension (mm) | 520*210*745mm |
Weight | 90kg |
Standard Delivery:
Microscope | 1pc | Indenter 2.5, 5, 10mm | Each 1pc |
Test Block | 3pcs | Flat and “V” Shape Test Anvil | Each 1pc |
Power Cable | 1pc | Operation Manual | Each 1copy |
Fuse | 2pcs | Brinell Software | 1pc |
Introduction of Brinell Software:
Brinell Optical Measuring System developed based on Windows operating system. It can be used in connect with any kind of Brinell Hardness Tester on the market, accurately gets the Brinell hardness and will replace traditional mechanical reading microscope.
It applies advanced visual technology, shooting the indentation by portable digital microscope and identifying the indentation precisely even under complex background to measure Brinell hardness. Operator needn’t predicate edge of the indentation, record indentation length, and check hardness table. realize auto-measuring, auto-recording, auto-saving and auto-generating hardness measuring chart.
Local photo: Used to open local photos to measure Brinell hardness, resolution 640*480 bmp format;
Save photo: To save Brinell indentation with resolution 640*480 bmp format;
Brinell Scale: To select force and indenter diameter before measure indentation;
Calibration: to calibrate magnification by test block, password is 11111;
Delete:Delete the selected right line, if no selected, delete last line;
EXCEL:Export test results to excel;
Report:Generate report and auto saving data;
Manual Measurement: Manually measure indentation;
Auto measurement: Auto measure Brinell hardness value;
