Touch Screen Brinell Hardness Tester HB-3000M

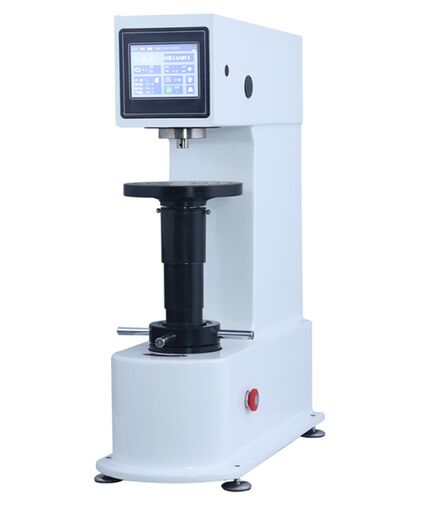

: Large Image : Touch Screen Brinell Hardness Tester HB-3000M

Product Details:

Brand Name:	iqualitrol
Model Number:	HB-3000M

Payment & Shipping Terms:

Minimum Order Quantity:	1 Set
Packaging Details:	Plywood Box
Delivery Time:	10 Working Days
Payment Terms:	T/T
Supply Ability:	10 sets per month

Contact Now

Detailed Product Description

Test Forces:	Ten-level Test Forces, Capable Of Testing Ten Types Of Brinell Scales, Providing A Wider Testing Range	Stable Structure:	Cast In One Piece Using A Special Sand Casting Process, Ensuring A Stable Structure That Does Not Deform
Closed-loop Sensor:	Closed-loop Sensor Loading Microcomputer Control System, High Testing Accuracy, And Stable Performance	Loading Control:	Adopts Fully Electronic Automatic Loading And Unloading, Microcomputer Control
Low Noise:	Very Little Noise During Testing, Making It Suitable For Various Laboratories	Optional Software:	Can Be Used With Computer Brinell Image Measurement Software, Greatly Improving Work Efficiency
Highlight:	non destructive testing instruments , fruit hardness tester

Touch Screen Brinell Hardness

Tester HB-3000M

Technical Specifications:

Model	HB-3000M
Brinell Scales	HBW2.5/62.5, HBW10/100, HBW2.5/187.5, HBW5/125, HBW10/250, HBW10/500, HBW5/750, HBW10/1000, HBW10/1500, HBW10/3000
Test Forces	62.5kgf(612.9N), 100kgf(980.7N), 125kgf(1226N), 187.5kgf(1839N), 250kgf(2452N), 500kgf(4903N), 750kgf(7355N), 1000kgf(8907N), 1500kgf(14710N), 3000kgf(29420N)
Vertical Space	230mm
Length Resolution	0.01mm
Dwell Time	0~60 seconds
Hardness Range	8~650HBW
Magnifications	20X
Executive Standards	EN ISO 6507, EN ISO 6506, ASTM E-384, ASTM E-10-08, ASTM E-384, GB/T231.2, JJG150
Depth Throat	140mm
Hardness Reading	By LCD
Power Supply	AC 220+5%,50~60Hz
Dimension	580250780mm
Weight	130kg
