Product Details:
Payment & Shipping Terms:
|
Data Memorized: | 254 Groups | Operating Conditions: | Temp:0~40ºC Humidity:<85%RH |
---|---|---|---|
Power Supply: | 3.7V Lithium Ion Rechargeable Battery | Dimensions: | 140x45x75mm |
Accuracy: | ±1.0GU | Range: | 0.1~200 Gloss Units |
Highlight: | non destructive testing machine,non destructive testing instruments |

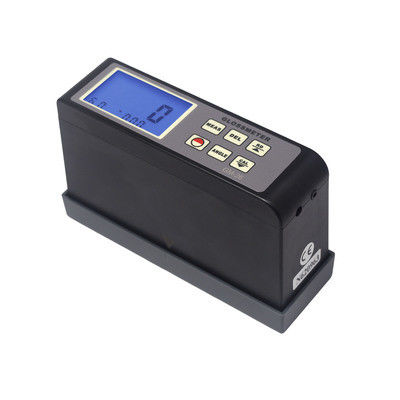

Rapid Measurement 20°/60° Gloss Meter GM-26 for Quality Control of Paint and Ink
Applications:
Widely used in Floor maintenance, Surface cleaning quality control, Stone and tile gloss measurement, Checking printed matter, Quality control of paint and ink, Polished metal surface, measurement
Features:
* In accordance with international standard ASTMD523, ASTMD1455, ASTMC346, ASTMC584, ASTMD2457, DIN ENISO2813, DIN67530, ENISO7668, JISZ8741, MFT30064, TAPPIT480, GB9754, GB/T13891, GB7706 and GB8807. Its technical parameters conform with JJG696-2002.
* Accurate measurement, good repetitveness.
* Small in size, easy to carry.
* Auto calibration.
* Intelligent design, rapid measurement.
* Able to store 254 groups of measurements.
* Built-in lithium ion rechargeable battery.
* Backlight display, suitable for low light environment.
* Use USB/RS-232 data output to connect with PC.
* Provide Bluetooth data output choice.
Material And Angle Selection Recommended:
* 20°: High gloss paint, printing ink, plastics, paper and other materials.
* 60°: Middle gloss paint, printing ink, plastics, ceramics, marble and other materials.
* 85°: Low gloss paint, camouflage coatings materials.
Specifications:
Display | 4 Digits Backlit LCD |
Measuring Angle | 20º/60º |
Range | 0.1~200 Gloss Units |
Gloss Units | GU |
Accuracy | ±1.0GU |
Resoltuion | 0.1 |
Repeatability | ±0.5GU |
Measuring Area | 7x14mm(Ellipse) |
Data Memorized | 254 Groups |
Operating Conditions | Temp:0~40ºC Humidity:<85%RH |
Power Supply | 3.7V Lithium Ion Rechargeable Battery |
Dimensions | 140x45x75mm |
Weight | 305g(Including Batteries) |
Stabdard Accessories | Main Unit |
Holder with Calibration Standard | |
AC Adapter | |
Optical Cleaning Cloth | |
Carrying Case | |
Operation Manual |
