Measuring Range: | Displacement 0.001~4.0mm Equivalent Peak-peak | Frequency Range: | Displacement 10Hz~1kHz |
---|---|---|---|
Highlight: | non destructive testing machine,non destructive testing instruments |

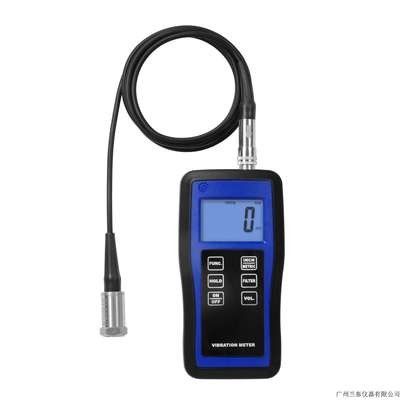

Spec:Used for measuring periodic motion, to check the imbalance and deflecting of moving machinery.
Features
* Landtek Instruments provide OEM/ODM services, specifically for customers to order unique instrument products, so that the product in the shape, color, function, distinguish from the same type of other products. This product difference performance, effectively improve product market competitiveness and achieve win-win situation.
* In accordance with ISO 2954, used for periodic measurements, to detect out-of-balance, misalignment and other mechanical faults in rotating machines.
* Specially designed for easy on site vibration measurement of all rotating machinery for quality control,commissioning, and predictive maintenance purposes.
* Individual high quality ccelerometer for accurate and repeatable measurements.
* Wide frequency range (10Hz~10kHz) in acceleration mode.
* Optional headphones for use as electronic stethoscope.
* Bearing condition monitoring function.
* Use USB/RS-232 data output to connect with PC.
* Provide Bluetooth data output choice.
Vibration Standard
ISO/IS2373 Motor Quality Standard According As Vibration Velocity | ||||
Quality Rank | Rev(rpm) | H:high of shaft(mm) Maximum vibration velocity rms(mm/s) |
||
80<H<132 | 132<H<225 | 225<H<400 | ||
Normal | 600~3600 | 1.8 | 2.8 | 4.5 |
Good(R) | 600~1800 | 0.71 | 1.12 | 1.8 |
1800~3600 | 1.12 | 1.8 | 2.8 | |
Excellent(S) | 600~1800 | 0.45 | 0.71 | 1.12 |
1800~3600 | 0.71 | 1.12 | 1.8 |
Specifications
Sensor | Piezoelectric Transducer | |
Measuring Range | Acceleration | 0.1~400m/s Equivalent Park |
Velocity | 0.01~400mm/s True RMS | |
Displacement | 0.001~4.0mm Equivalent Peak-peak | |
Frequency Range | Acceleration | 10Hz~10kHz |
Velocity | 10Hz~1kHz | |
Displacement | 10Hz~1kHz | |
Accuracy | 5% of Reading+2 digits | |
Operating Conditions | Temperature | 0~50℃ |
Humidity | <90%RH | |
Power Supply | 4x1.5V AAA(UM-4)Battery | |
Dimensions | 140x72x34mm | |
Weight | 205g(Not Including Batteries) | |
Standard Accessories | Main Unit | |
Piezoelectric Transducer | ||
Powerful Rare Earth Magnet | ||
Probe(Cone)&Probe(Spherical) | ||
Carrying Case(B04) | ||
Manual Book | ||
Optional Accessories | Headset | |
RS-232C Data Cable with Software | ||
Bluetooth Data Adapter with Software |
