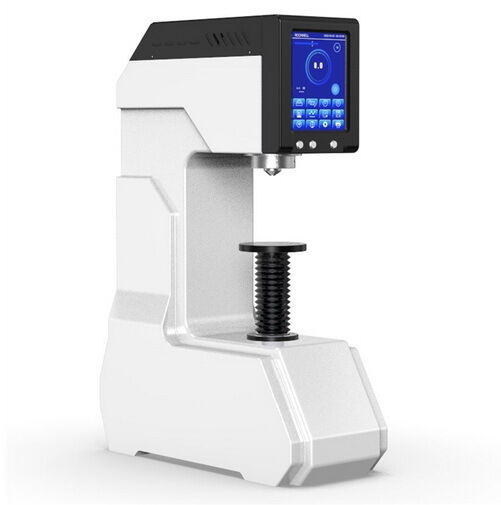

Automatic Hardness Tester HRS-150ZD Support Superficial and Regular Rockwell Scales

Automatic Hardness

Tester HRS-150ZD Support Superficial and Regular Rockwell Scales

Download Technical Data: ROCKWELL Hardness Tester HRS-150ZD

Brief Introduction:

The iqualitrol HRS-150ZD is an Electronic Loading Rockwell Hardness Tester. After pressed start button, the workbench will automatically rise, and will automatically load and unload after the sample touches the indenter, then display the hardness value.

Technical Specifications:

Main Features:

1. 8 inch touch screen, simple and convenient operation, can display and set the current test scale, test force, test indenter, dwell time, hardness conversion value.

2. It supports all Rockwell scales, including 15 kinds of Rockwell scales: HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK, HRL, HRM, HRP, HRR, HRS, HRV; There are 6 kinds of superficial Rockwell scales: HR15N, HR30N, HR45N, HR15T, HR30T and HR45T, which can be converted between hardness scales;

3. Automatically apply the initial test force and main test force, the loading, dwell and unloading test force are automatically switched, and the operation is simple and rapid;

4. The test force is automatically compensated, and the accuracy of test force is greatly improved; the high, medium and low hardness values are automatically corrected;

5. With the workbench automatic lifting function, one key control the entire test process;

6.The fuselage is formed by a casting process and has been aged for a long time. Compared with the splicing process, the long-term use of small deformation, and can effectively adapt to a variety of harsh environments;

Application Range:
Suitable for quenching, quenching and tempering, annealing, chilled castings, malleable castings, hard alloy steel, aluminum alloy, copper alloy, bearing steel and other hardness determination.

The iqualitrol HRS-150ZD is also suitable for surface quenching steel, material surface heat treatment and chemical treatment layer, copper, aluminum alloy, sheet, galvanized, chrome plated, tin plated materials, bearing steel, chilled castings, etc.

Standard Delivery:
