Surface Profile Gauge SRT-6223+

China Surface Profile Gauge SRT-6223+ supplier

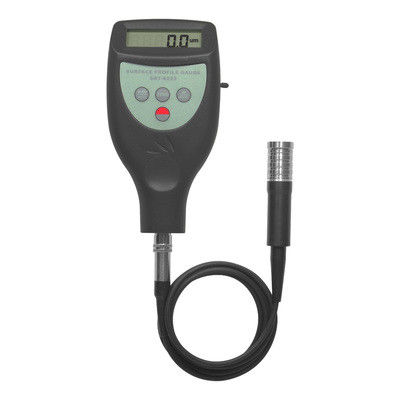

Large Image :  Surface Profile Gauge SRT-6223+

Product Details:

Place of Origin: DONGGUAN
Brand Name: iqualitrol
Certification: CE
Model Number: SRT-6223+

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Carton box
Delivery Time: 10 work days
Payment Terms: T/T
Supply Ability: 100 set per month
Contact Now
Detailed Product Description
Range: 0 ~ 800 M/29.5 Mils Accuracy: 5%or5m,(whichever Is The Greater)
Resolution: 0.1m/ 1m 0.1mils Operating: Temperature 0℃ ~ 50℃
Conditions: Humidity < 80% RH Power Supply: 4x1.5V AAA(UM-4)Battery
High Light:

non destructive testing instruments


fruit hardness tester


Spec:This Digital Surface Profile Gauge is a handheld gauge for fast and accurate measurement of the peak-to-valley height of the surface profile of blast cleaned surfaces.



* It meets the standards of ASTMD-4417-B, IMOMSC.215(82), SANS5772, US Navy NSI 009-32, US Navy PPI-63101-000. Suitable for the laboratory and for use in harsh field conditions. Accurate, immediate and repeatable results.

* The tungsten carbide tip will last for up to 20,000 readings and can then be easily replaced by the user in the field. Cost per test is significantly lower than other test methods.

* Small in size, light in weight and easy to use.

* Manual or automatic power off.

* Metric/Imperial Conversion.

* With average calculation function.

* Separate Probe.

* Use USB data output to connect with PC.

* Provide Bluetooth data output choice.



Display LCD
Range 0 ~ 800 m/29.5 mils
Accuracy 5%or5m,(whichever is the greater)
Resolution 0.1m/ 1m
Principle Inductance Type
Operating Temperature 0℃ ~ 50℃
Conditions Humidity < 80% RH
Power Supply 4x1.5V AAA(UM-4)Battery
Dimensions 126x65x28 mm
Weight 280 g



Main Unit
Standard Sample Plate
Carrying Case (B04)
Operation Manual
Optional Accessories USB Cable with Software
Bluetooth Adapter with Software
