| Accuracy: | ±1 % | Resolution: | 1/200000 |
|---|---|---|---|
| Test Speed: | 0-300 Mm/min | Effective Stroke: | 600mm |
| Test Space: | 120mm | Result Output: | Printer |
| High Light: | universal material tester,universal testing machine |
||

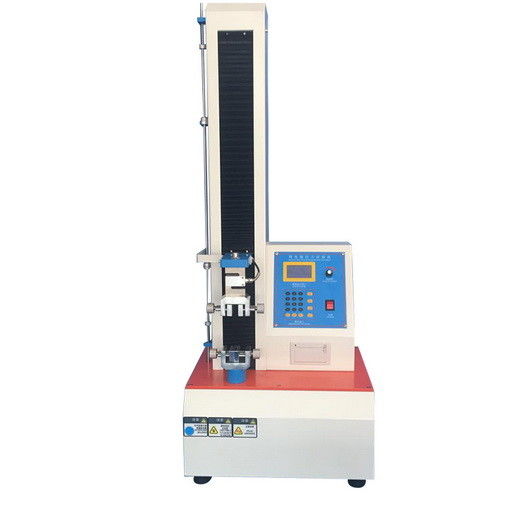

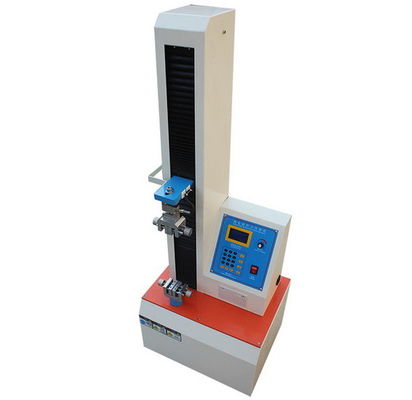

LCD Display Single Column Tensile Testing Machine with Max Capacity 100Kgf
Model: iRY-4
Applicable to plastic film, composite film, adhesive, adhesive tape, medical patch, protective film, release paper, rubber, artificial leather, paper fiber and other products.
Used to test Tensile strength, peel strength, deformation rate, pull off force, peel force , opening force and other performance.
Application:
Adhesive tapes, automobiles, ceramics, composites, construction, food and medical equipment, metals, paper, packaging, rubber, textiles, wood, telecommunications and all kinds of special materials
Technical Specifications:
| Capacity choice | 2, 5, 10, 50, 100 kgf (choose one) |
| Measurement accuracy | ±1 % |
| Resolution | 1/200000 |
| Test speed | 0-300 mm/min |
| Effective stroke | 600mm |
| Test space | 120mm |
| Force unit | kgf, gf, N, kN, lbf |
| Stress units | MPa, kPa, kgf/cm2, lbf/in2 |
| Stop mode | upper and lower safety settings, test breakpoint sensing |
| Result output | micro printer |
| Power | Speed Control Motor |
| Weight | 40Kg |
| Power supply | AC220V, 50/60Hz, 1Ph |
