RCA Tape Abrasion Tester Material Testing Machine For Surface Coating Specimens Conform

China RCA Tape Abrasion Tester Material Testing Machine For Surface Coating Specimens Conform supplier
RCA Tape Abrasion Tester Material Testing Machine For Surface Coating Specimens Conform supplier RCA Tape Abrasion Tester Material Testing Machine For Surface Coating Specimens Conform supplier RCA Tape Abrasion Tester Material Testing Machine For Surface Coating Specimens Conform supplier RCA Tape Abrasion Tester Material Testing Machine For Surface Coating Specimens Conform supplier

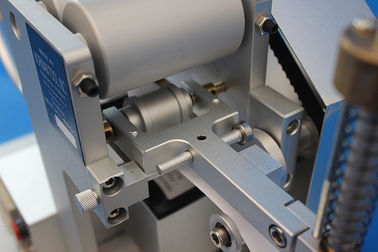

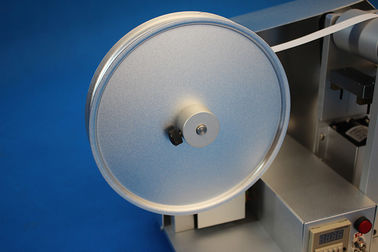

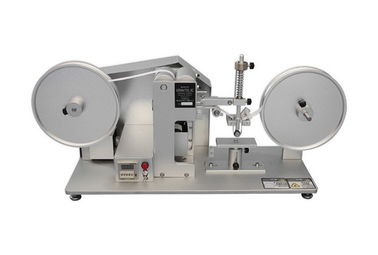

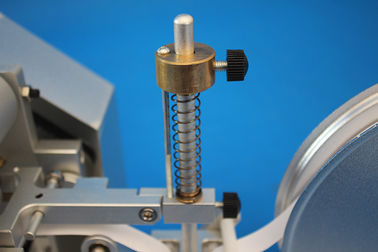

Large Image :  RCA Tape Abrasion Tester Material Testing Machine For Surface Coating Specimens Conform

Product Details:

Brand Name: iqualitrol
Model Number: iRY-6

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: Plywood Box
Delivery Time: 5 Working Days
Payment Terms: T/T
Supply Ability: 30 Sets per Month
Detailed Product Description
Load: 275g, 175g, 55g Counter: Rotary Counter
Speed: 1min/2670mm Rotation Speed: 17rpm
Power Supply: AC220V/50Hz/1P Dimension: 800×300×380mm
Highlight:

universal material tester

,

tensile testing machine



RCA Tape Abrasion Tester for Surface Coating Specimens



Brief Introduction:

RCA Tape Abrasion Tester is suitable for abrasion resistance test of various surface coating (electroplating, baking paint, screen printing, etc.) test specimens.



After rolling the non-oiled paper or tape and the sample, it can be rotated The number of discriminating the effect of its wear.



Tape abrasion tester based on standard: ASTM F2357-04



With RCA special tape, apply to the surface of the product with a fixed weight (55g, 175g, 275g).



Fixed diameter roller and constant speed motor with special counter. The wear resistance of the product is determined by the number of times the product can withstand wear. Widely used in mobile phone surface coating performance testing.



Technical Specifications:

Load 275g, 175g, 55g
Counter Rotary Counter
Speed 1min/2670mm; 1cyc/157mm; Non stop operation
Rotation speed 17rpm
Power supply AC220V/50Hz/1P
Dimension 800×300×380mm



Standard Delivery:
1, Weights 55g, 175g, each one
2. Hexagon wrench
3, Level
4, Magnifier
5, Binder Clip
6, O-ring
7, One roll of paper tape
