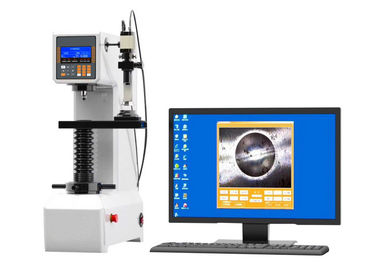

LCD Computer Type Brinell Hardness Tester with CCD Measuring System and Software

China LCD Computer Type Brinell Hardness Tester with CCD Measuring System and Software supplier
LCD Computer Type Brinell Hardness Tester with CCD Measuring System and Software supplier LCD Computer Type Brinell Hardness Tester with CCD Measuring System and Software supplier

Large Image :  LCD Computer Type Brinell Hardness Tester with CCD Measuring System and Software

Product Details:

Place of Origin: Dongguan/China
Brand Name: Q1-Test
Certification: CE, ISO6506
Model Number: HBE-3000S

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Case
Delivery Time: 20 Working Days
Payment Terms: T/T
Supply Ability: 30 Sets per Month
Detailed Product Description
Measure Mode: By Brinell Measuring Software Hardness: Range 8~650HBW
Resolution: 0.005mm Application: Almost Any Metallic Material
Horizontal: Space 135mm Force Control: By High Precision Sensor
High Light:

digital hardness tester

,

hardness testing equipment



Optical Electronic Brinell Hardness Tester with Automatic Measuring Software



Model: HBE-3000S



The computer-type electronic Brinell hardness tester HBE-3000S removes the original weight load, adopts a single-chip computer to control, the sensor collects the signal, and the step motor is charged and closed loop control system.



Ensure that the force value is more accurate and the indication value is more stable. Equipped with a mobile measurement platform and computer measurement system with good operability and humanity, high test speed and cost performance, can save test results, print, analyze, and issue test reports, widely used in the factory floor, Universities, research institutes, laboratories, etc.



Features:

1, High accuracy compression sensor to feedback and the CPU control system to automatically compensate the test force lost during the testing.



2, 10 Steps Testing force for wider application;



3, Equips with stepping motor to realize automatic loading, dwell and unloading, with much lower noise during testing;



4, Die casting metal shell, stable structure, able to work under rugged environment;



5, Surface with car baking process, strong resistance of scratches, still brightness after years using;





Technical Specifications:



Model HBE-3000S
Brinell Scales HBW2.5/62.5, HBW2.5/187.5, HBW5/125, HBW5/750, HBW10/1000, HBW10/1500, HBW10/3000, HBW10/250, HBW10/500, HBW10/100
Test Force 62.5kgf(612.9N), 100kgf(980.7N), 125kgf(1226N), 187.5kgf(1839N), 250kgf(2452N), 500kgf(4903N),750kgf(7355N), 1000kgf(8907N), 1500kgf(14710N),3000kgf(29420N)
Vertical Space 220mm
Resolution 0.005mm
Dwell Time 0~60s
Hardness Range 8~650HBW
Magnification 20X
Standards GB/T231.2, JJG150
Horizontal Space 135mm
Hardness Reading By Software
Power Supply AC220+5%,50~60Hz
Dimension (mm) 520*210*745mm
Weight 90kg



Standard Delivery:

Microscope 1pc Indenter 2.5, 5, 10mm Each 1pc
Test Block 3pcs Flat and “V” Shape Test Anvil Each 1pc
Power Cable 1pc Operation Manual Each 1copy
Fuse 2pcs Brinell Software 1pc





LCD Computer Type Brinell Hardness Tester with CCD Measuring System and Software

Introduction of Brinell Software:



Brinell Optical Measuring System developed based on Windows operating system. It can be used in connect with any kind of Brinell Hardness Tester on the market, accurately gets the Brinell hardness and will replace traditional mechanical reading microscope.



It applies advanced visual technology, shooting the indentation by portable digital microscope and identifying the indentation precisely even under complex background to measure Brinell hardness. Operator needn’t predicate edge of the indentation, record indentation length, and check hardness table. realize auto-measuring, auto-recording, auto-saving and auto-generating hardness measuring chart.



LCD Computer Type Brinell Hardness Tester with CCD Measuring System and Software



Local photo: Used to open local photos to measure Brinell hardness, resolution 640*480 bmp format;

Save photo: To save Brinell indentation with resolution 640*480 bmp format;

Brinell Scale: To select force and indenter diameter before measure indentation;

Calibration: to calibrate magnification by test block, password is 11111;

Delete:Delete the selected right line, if no selected, delete last line;

EXCEL:Export test results to excel;

Report:Generate report and auto saving data;

Manual Measurement: Manually measure indentation;

Auto measurement: Auto measure Brinell hardness value;



PLYWOOD BOX PACKING:



LCD Computer Type Brinell Hardness Tester with CCD Measuring System and Software
