Digital Automatic Turret Vickers Hardness Testing Equipment With Touch Screen

China Digital Automatic Turret Vickers Hardness Testing Equipment With Touch Screen supplier
Digital Automatic Turret Vickers Hardness Testing Equipment With Touch Screen supplier Digital Automatic Turret Vickers Hardness Testing Equipment With Touch Screen supplier Digital Automatic Turret Vickers Hardness Testing Equipment With Touch Screen supplier Digital Automatic Turret Vickers Hardness Testing Equipment With Touch Screen supplier

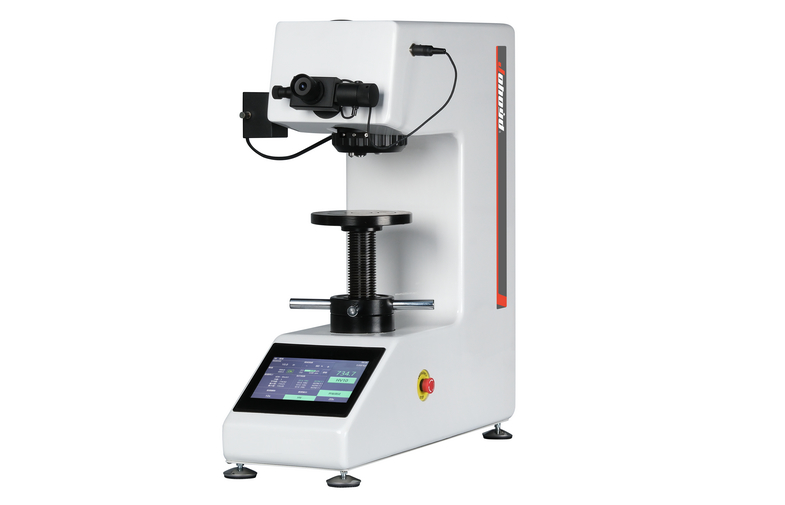

Large Image :  Digital Automatic Turret Vickers Hardness Testing Equipment With Touch Screen

Product Details:

Place of Origin: Dongguan/China
Brand Name: Q1-Test
Certification: CE, ASTM E92
Model Number: HVST-10Z

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Case
Delivery Time: 10 Working Days
Payment Terms: T/T
Supply Ability: 30 Sets/Month
Detailed Product Description
Max Force: 10Kgf (98N) Load Control: Automatic (Loading, Dwell, Unloading)
Optical Path: Dual Light Paths Objectives: 10x, 20x (Optional 20X, 40X)
Vertical: Specimen Height Max 165mm Horizontal: 130mm
High Light:

portable metal hardness tester

,

hardness testing equipment



Touch Screen Digital Automatic Turret Vickers Hardness Tester with Built-in Printer



Model: HVST-10Z



Brief Introduction:

HVST-10Z equips with 7-inch LCD touch screen, it can provide more measurement data, all the settings can be done on touch screen.

The upgraded digital 10x eyepiece can directly read the measurement length, so that the measurement value can be obtained more quickly and accurately. The turret can be automatically switched between eyepiece and indenter to avoid artificial errors and damage the instrument, also greatly improve the efficiency.



Main functions and features:

1, 7-inch touch screen can display test method, test force, upper and lower limit of hardness value, measure indentation length, hardness value, test force dwell time, count of measurements;

2, HVST-10Z comes with built-in calibration function, support error compensation;

3, optical system brightness adjustable range: 0-100;

4, can save up to 100 sets of test data, in the main interface to display the average and the number of test data;

5, the test force unit can be set in Kgf or N

6. The main interface can display 4 conversion scales at the same time, and can be switched: ASTM Standard and ISO Standard. Support a total of 18 scales can be converted: HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HV, HK, HBW;

7, can set the upper and lower limit measurement range, displayed in the main measurement interface;

8, test data can be directly exported via USB;



Main application scope:

1. Iron and steel, non-ferrous metals, metal foils, hard alloys, metal sheets, microstructures, carbonization;

2. Carburizing, nitriding and decarburization layers, surface hardened layer, plating layer, coating, heat treatment;

3, glass, wafers, ceramic materials;



Technical Parameters:

Vickers hardness scale HV0.3,HV0.5,HV1.0,HV3.0,HV5.0,HV10.0
display

5-digit hardness value, 4-digit diagonal length (D1, D2),

Hold time, number of tests, average, standard deviation, return

Test force 0.3,0.5,1.0,3.0,5.0,10.0kgf
Loading control Automatic (load/dwell/unload)
Dwell time 1~99 Seconds
Optical Path Dual light paths (eyepieces and CCD camera channels)
Optical system

Objectives: 10X, 20X(Optional 20X 40X)

Eyepiece Magnification: 10X

Total magnification (μm): 100X, 200X

Measuring range (μm): 400

Resolution (μm): 0.125

Hardness measurement range (5-3000)HV
XY test stand (optional)

Size (mm): 100*100

Travel range (mm): 25*25

Minimum reading (mm): 0.01

Maximum height of specimen (mm) 165
Maximum width of specimen (mm) 130 (distance from the center line of the indenter to the wall)
Data output Reserve built-in mini printer interface, (RS232 serial interface) optional installation
voltage AC220V/50HZ
Overall size (mm) 585*200*630
Weight (kg) 42



Digital Automatic Turret Vickers Hardness Testing Equipment With Touch Screen



Standard configuration

Main Unit 1
weight 3
Large and medium "V" test benches 1
Horizontal adjustment screw 4
Power cable 1
10X digital microscope eyepiece 1
Vickers hardness block 2
Spare fuse 2A 2
Product Certificate 1
Instruction Manual 1

Remarks: Optional Vickers  measurement software, eliminate human error, computer operation, improve efficiency, accuracy is more accurate. Optional internal printer, one-click printing of measurement data.
