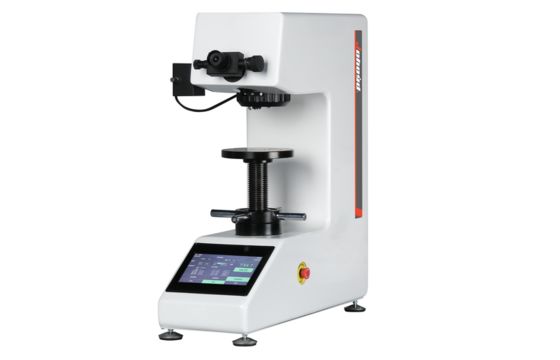

Mechanical Eyepiece Touch Screen Automatic Turret Vickers Hardness Tester Conform ASTM E92

Mechanical Eyepiece Touch Screen Automatic Turret Vickers
Hardness Tester Conform ASTM E92

Model: HVT-10Z

HVT-10Z equips with 7-inch LCD touch screen, it can provide more measurement data, all the settings can be done on touch screen.

The standard 10x eyepiece is mechanical type, with lower prices but durable, need to manually input length of indentation diagonal line, then hardness value will be automatically displayed on touch screen.

The turret can be automatically switched between eyepiece and indenter to avoid artificial errors and damage the instrument, also greatly improve the efficiency.

Main functions and features:

1, 7-inch touch screen can display test method, test force, upper and lower limit of hardness value, measure indentation length, hardness value, test force dwell time, count of measurements;

2, HVT-10Z comes with built-in calibration function, support error compensation;

3, optical system brightness adjustable range: 0-100;

4, can save up to 100 sets of test data, in the main interface to display the average and the number of test data;

5, the test force unit can be set in Kgf or N

6, The main interface can display 4 conversion scales at the same time, and can be switched: ASTM Standard and ISO Standard. Support a total of 18 scales can be converted: HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HV, HK, HBW;

7, can set the upper and lower limit measurement range, displayed in the main measurement interface;

8, test data can be directly exported via USB;

Main application scope:

1. Iron and steel, non-ferrous metals, metal foils, hard alloys, metal sheets, microstructures, carbonization;

2. Carburizing, nitriding and decarburization layers, surface hardened layer, plating layer, coating, heat treatment;

3, glass, wafers, ceramic materials;

Technical Specifications:
