Aircraft Maintenance Industrial Video Scope With Camera 0.45 Mega Pixel Infrared Thermometry

China Aircraft Maintenance Industrial Video Scope With Camera 0.45 Mega Pixel Infrared Thermometry supplier
Aircraft Maintenance Industrial Video Scope With Camera 0.45 Mega Pixel Infrared Thermometry supplier Aircraft Maintenance Industrial Video Scope With Camera 0.45 Mega Pixel Infrared Thermometry supplier Aircraft Maintenance Industrial Video Scope With Camera 0.45 Mega Pixel Infrared Thermometry supplier Aircraft Maintenance Industrial Video Scope With Camera 0.45 Mega Pixel Infrared Thermometry supplier

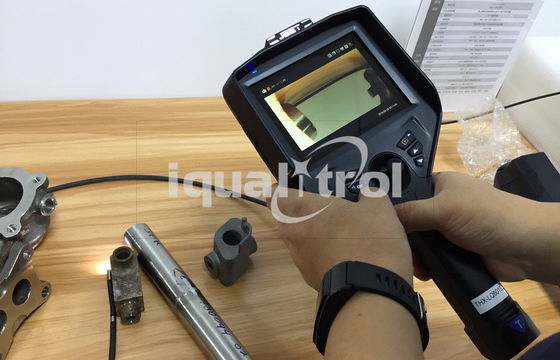

Large Image :  Aircraft Maintenance Industrial Video Scope With Camera 0.45 Mega Pixel Infrared Thermometry

Product Details:

Brand Name: iqualitrol
Model Number: i35-6020S

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Packaging Details: Carton box
Delivery Time: 3 Working Days
Payment Terms: T/T
Supply Ability: 30 sets per month
Detailed Product Description
Optional: Temperature Measure, WIFI Depth Of Field: 20mm~150mm/ 10-100mm
View: Camera Side View Replaceable: Tubes Diameter From 2mm To 6mm
Camera Material: Titanium Alloy Illumination: 30,000lx At A Maximum
Highlight:

non destructive testing machine

,

non destructive testing instruments


Aircraft Maintenance Industrial Videoscope with Camera 0.45 MegaPixel Infrared Thermometry


Model: i35-6020S

Brief Introduction:
A videoscope or video borescope typically utilizes a CCD or CMOS camera sensor, located at the tip of the borescope, to produce an image that is relayed to an external viewing device such as an LCD monitor.

CCD cameras made it possible to manufacture high resolution videoscopes or video borescopes. The CCD provided a better overall borescope inspection that fiberscopes or flexible borescopes. Videoscopes are now used for most borescope inspections, except in application that have very limited access and require a small diameter fiberscope.

A wider range of videoscope, fiberscopes and borescopes with various diameters and viewing options are available, making our videoscopes systems the most versatile inspection system suitable for a multitude of inspection requirements.

Application:
Defense/security, Maintenance of military aircraft, as well as for detection of narcotics and other contraband items, and search of victims who may be trapped as the result of various disasters;

Automotive, Quality control examination of engines, hydraulic components, injection nozzles, as well as final inspection of assembles;

iqualitrol videoscopes are widely used in the fields of automotive manufacturing, car aftermarket, police security checking, aviation and aerospace area, special inspection institute, pharmaceutical machinery, non-destructive testing explosion-proof detection, ect.

Quality Assurance:
All products are complied with RoHS, CE and ISO standard and passed testing for temperature, waterproof, drop, vibration and pressure. Our vision is providing high-quality professional inspection instrument to every customer.

Operation Environment:

Host System Working Temperature -20°C~50°C, when 0°C below, the display needs preheating.
Camera Working Temperature -20°C~80°C, when 0°C below, please reduce oriented operation.
Store Temperature -23°C~63°C
Relative Humidity Maximum: 92%, non-condensing


   Aircraft Maintenance Industrial Video Scope With Camera 0.45 Mega Pixel Infrared Thermometry




Technical Specifications:

Camera Diameter(mm) Φ6mm
Camera Material Titanium alloy
Camera Pixel 0.45 Mega Pixel
Depth of Field 20mm~150mm/ 10-100mm
Angle of Field 120°
Illumination 30,000lx at a maximum
Bright/Chroma/Contrast Ratio Adjustment Manual, bright: six levels, chroma and contrast ratio: manual adjusting
Articulation 360° all-way articulation
Bending Angle ≥180°
Effective Working Length 2m
Insert Tube tungsten-braided
Protecting Device of
Durability
Buffer protection device between the host and wear-resistant tube
Display Highlight 3.5 inches TFT LCD, can be replaceable for 5.7 inches display
Display Resolution 640*480
Image Resolution 640*480/1280*720/1920*1080
Video Resolution 640*480/1280*720/1920*1080
Image/Video Format JPEG/MOV
WIFI Function WIFI(optional)
IR Function IR/IR thermal imaging(optional)
Memory Standard TF card:8G, Maximum: 32G
Language Chinese, English, Russian… 8 languages
Data I/O port Micro-USB port,HDMI port
Waterproof Camera/Object glass/Tubes:IP67
Working Time ≥8 hours
Weight ≤0.55kg(with batteries)
Power Supply Rechargeable lithium battery(or built-in battery)
Battery Capacity 3.7V 3200mAh
Power Consumption 2W
Charging Parameters DC5V, Maximum current:1A
