Touch Screen Micro Vickers Hardness Tester Manual Turret with High Speed ARM Processor

China Touch Screen Micro Vickers Hardness Tester Manual Turret with High Speed ARM Processor supplier

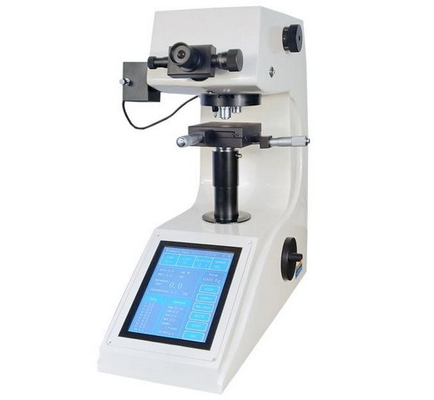

Large Image :  Touch Screen Micro Vickers Hardness Tester Manual Turret with High Speed ARM Processor

Product Details:

Place of Origin: Dongguan/China
Brand Name: q1-test
Certification: CE
Model Number: HV-1000THY

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Box
Delivery Time: 3 Working Days
Payment Terms: T/T
Supply Ability: 100 Sets per Month
Detailed Product Description
Correction: Software Hardness Value Correction XY Worktable: Size: 100 * 100mm
Specimen: Maximum Height Of Specimen 120mm Turret Mode: Manual Turret
Machine Body: High Quality Cast Iron Display: 8 Inch Touch Screen


Touch Screen Micro Vickers Hardness Testing Machine Manual Turret with High Speed ARM Processor


Model: HV-1000THY


Product Features:

● iqualitrol HV-1000THY Touch-screen micro vickers hardness tester, adopt 8 -inch touch screen and high-speed ARM processor, Visual display, friendly man-machine interaction, easy operation, Fast operation speed, extensive database storage, data automatic correction, and provide data broken line report;


● The body shell of HV-1000THY is integral casting by high quality cast iron, with the automotive paint treatment process, the appearance is round and beautiful;

● The turbo-worm lifting system can greatly improve the test stability and accuracy, and there is no need to focus again after the test is completed;


● HV-1000THY equips with manual turret function, HD measurement and observation - dual objective lens combination, combined with the built-in length encoder HD micrometer eyepiece, to achieve indentation diagonal one-key measurement, greatly reduce the manual interference and reading error;


● Convenient control system can automatically convert the unit of full hardness scale;

●The maximum and minimum hardness values can be set, when the test value exceeds the set range, an alarm sound will be issued;


●With the function of software hardness value correction, the hardness value can be directly corrected within a certain range;

● With the database function, the test data can be saved automatically in groups, each group can save 10 data, total can save more than 2000 data;


● With the hardness value curve display function, intuitive display the changes of hardness value;

● CCD image processing system can be optional, the knoop indenter can be selected to measure the knoop hardness;


● Equipped with wireless blue-tooth printer, the data can be output through RS232 and USB interface port;

● Accuracy is in line with GB/T4340.2 ISO6507-2 and us ASTM E384.



Technical Specifications:


Model HV-1000THY
Hardness Range 5-5000HV
Test Force



Data Entry Mode Manual
Turret Mode Manual
Maximum Height of Specimen 120mm
Distance between Indenter Center and Wall 110mm
XY Worktable Size 100*100mm
XY Worktable Travel 25*25mm
Resolution of XY Worktable 0.01mm
Objectives 10×,40×
Total Magnifications 100×,400×
Eyepiece Resolution 0.025μm
Hardness Resolution 0.1HV
Power Supply AC 220V,50Hz
Outline Dimension 530*290*490mm
Weight 45kg



Accessories Box:


XY Worktable One PC
Thin Shaft Test table One PC
Thin Sheet Test table One PC
Small Flat Forceps Test table One PC
Large V Block One PC
Small V Block One PC
Diamond Quadrilateral Cone Head One PC
Standard Vickers Hardness Block Two Blocks
