Touch Screen Digital Auto Turret Micro Vickers Hardness Testing Machine with integral casting

China Touch Screen Digital Auto Turret Micro Vickers Hardness Testing Machine with integral casting supplier

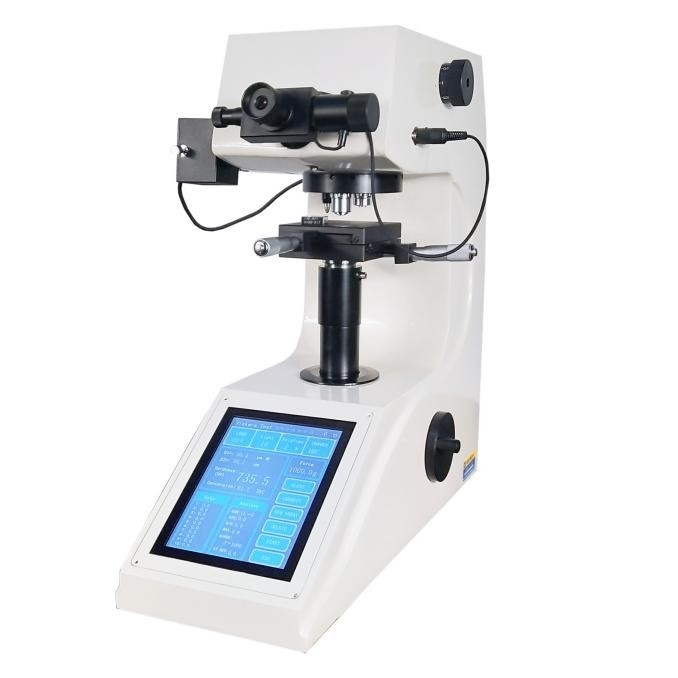

Large Image :  Touch Screen Digital Auto Turret Micro Vickers Hardness Testing Machine with integral casting

Product Details:

Place of Origin: Dongguan/China
Brand Name: q1-test
Certification: CE, ISO
Model Number: HVS-1000ATHY

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Box
Delivery Time: 3 Working Days
Payment Terms: T/T, Western Union
Supply Ability: 20 Sets per Month
Detailed Product Description
Range Set: Set Maximum And Minimum Hardness Values Eyepiece: Length Encoder HD Micrometer Eyepiece
Lifting: Turbo-worm Lifting System, Stability And Accuracy Shell: Integral Casting By High Quality Cast Iron
Screen: 8 Inch Touch Screen Turret: Automatic Turret Function



Touch Screen Digital Auto Turret Micro Vickers Hardness Tester with integral casting Shell



Model: HVS-1000ATHY



Product Features:

● iqualitrol HVS-1000ATHY Touch-screen digital auto turret micro vickers hardness tester, adopt 8 -inch touch screen and high-speed ARM processor, Visual display, friendly man-machine interaction, easy operation, Fast operation speed, extensive database storage, data automatic correction, and provide data broken line report;



● The machine body is integral casting by high quality cast iron, with the automotive paint treatment process, the appearance is round and beautiful;

● The turbo-worm lifting system can greatly improve the test stability and accuracy, and there is no need to focus again after the test is completed;



● Equipped with automatic turret function, HD measurement and observation - dual objective lens combination, combined with the built-in length encoder HD micrometer eyepiece, to achieve indentation diagonal one-key measurement, greatly reduce the manual interference and reading error;



● Convenient control system can automatically convert the unit of full hardness scale;

●The maximum and minimum hardness values can be set, when the test value exceeds the set range, an alarm sound will be issued;



●With the function of software hardness value correction, the hardness value can be directly corrected within a certain range;

● With the database function, the test data can be saved automatically in groups, each group can save 10 data, total can save more than 2000 data;



● With the hardness value curve display function, intuitive display the changes of hardness value;

● CCD image processing system can be optional, the knoop indenter can be selected to measure the knoop hardness;



● Equipped with wireless blue-tooth printer, the data can be output through RS232 and USB interface port;

● Accuracy is in line with GB/T4340.2 ISO6507-2 and us ASTM E384.





Technical Specifications:



Model HVS-1000ATHY
Range of Measurement 5-5000HV
Test Force

0.09807,0.2452,0.4904,0.9807,1.961,2.942,4.904,9.807N

(10,25,50,100,200,300,500,1000gf)

Data Entry Mode Automatic
Turret Mode Automatic
Maximum Height of Specimen 120mm
Distance between Indenter Center and Wall 110mm
XY Worktable Size 100*100mm
XY Worktable Travel 25*25mm
XY Worktable Travel Resolution 0.01mm
Objectives 10×,40×
Total Magnification 100×,400×
Indentation Measuring Resolution 0.025μm
Hardness Resolution 0.1HV
Power Supply AC 220V,50Hz
Outline Dimension 530*290*490mm
Net Weight 45kg







Accessories Box:



XY Worktable One PC
Thin Shaft Test table One PC
Thin Sheet Test table One PC
Small Flat Forceps Test table One PC
Large V Block One PC
Small V Block One PC
Vickers Indenter One PC
Standard Vickers Hardness Block Two Blocks
