Sensor Loading Manual Turret Mechanical Eyepiece Vickers Hardness Testing Machine with LCD

China Sensor Loading Manual Turret Mechanical Eyepiece Vickers Hardness Testing Machine with LCD supplier

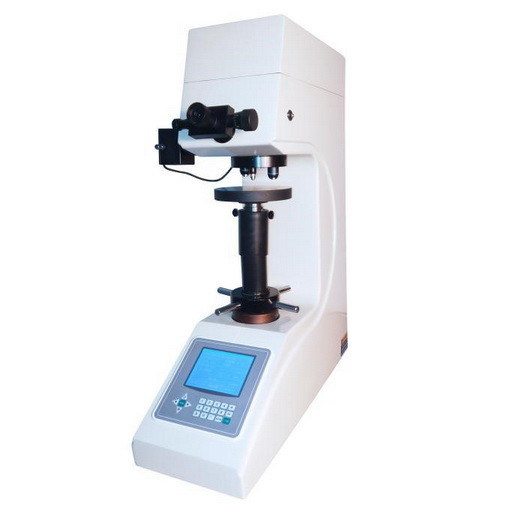

Large Image :  Sensor Loading Manual Turret Mechanical Eyepiece Vickers Hardness Testing Machine with LCD

Product Details:

Place of Origin: Dongguan/China
Brand Name: q1-test
Certification: CE, ISO
Model Number: HV-5EHY

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Box
Delivery Time: 3 Working Days
Payment Terms: T/T
Supply Ability: 100 Sets per Month
Detailed Product Description
HV-50EHY: Force 50Kgf, Sensor Loading Auto Turret Analogue Eyepiece HV-30EHY: Force 30Kgf, Sensor Loading Auto Turret Analogue Eyepiece
HV-10EHY: Force 10Kgf, Sensor Loading Auto Turret Analogue Eyepiece HV-5EHY: Force 5Kgf, Sensor Loading Auto Turret Analogue Eyepiece
Fuselage: High-quality Cast Iron For One-time Casting With The Car Paint Treatment Process Turret: MANUAL Turret Adopts High-speed ARM Processor, Intuitive Display



Sensor Loading MANUAL Turret Mechanical Eyepiece Vickers Hardness Tester with LCD



Model: HV-5EHY



product description:

The new iqualitrol HV-5/10/30/50EHY MANUAL turret Vickers hardness tester adopts high-speed ARM processor, intuitive display, friendly human-computer interaction, and easy operation;



The fuselage is made of high-quality cast iron for one-time casting, combined with the car paint treatment process, the shape is round and beautiful;



The test force is loaded and unloaded electrically, and the closed-loop feedback is performed by a pressure sensor with a precision of 5‰, and the high-speed ARM processor controls and can automatically correct the test force;



MANUAL turret function is configured;



Convenient operating system, which can automatically convert the unit of the full hardness scale;

The maximum and minimum values of the hardness value can be set, and when the test value exceeds the set range, an alarm will sound;



Optional CCD image processing system, and optional Knoop indenter for Knoop hardness measurement;

Configure a wireless bluetooth printer, and output data through RS232 and USB interfaces;



The accuracy complies with GB/T4340.2-2018 ISO6507-2 and American ASTM E384.



Main Parameters:

Model HV-5/10/30/50EHY
Range of Measurement 5-5000HV
Test Force Loading Mode SENSOR Loading
HV-5EHY

0.3,0.5,1.0,

2.0,3.0,5.0kgf

HV-10EHY

0.3,0.5,1.0,

3.0,5.0,10kgf;

HV-30EHY

0.3,0.5,1.0,

5.0,10.0,30.0kgf

HV-50EHY

1.0,5.0,10.0,

20.0,30.0,50.0kgf.

Data Entry Mode MANUAL
Turret Mode MANUAL TURRET
Maximum Height of Specimen 200mm
Distance between Indenter Center and Wall 130mm
Objective HV-5/10/30EHY serial



10×,40×



HV-50EHY 10×,20×
Magnifications 100×,400× 100×,200×
Eyepiece Measure Resolution 0.025μm 0.1μm
Hardness Resolution 0.1HV
Power Supply AC 220V,50Hz
Outline Dimension 620*330*650mm
Weight 75kg



Accessories Box:



Micrometer Eyepiece One PC The Small Anvil One PC
The Big Anvil One PC Diamond Vickers Indenter One PC
V-type Anvil One PC Standard Vickers Hardness Block Two Blocks
