Software Control Half Automatic Digital Vickers Hardness Tester with Motorized X-Y Table

China Software Control Half Automatic Digital Vickers Hardness Tester with Motorized X-Y Table supplier
Software Control Half Automatic Digital Vickers Hardness Tester with Motorized X-Y Table supplier Software Control Half Automatic Digital Vickers Hardness Tester with Motorized X-Y Table supplier Software Control Half Automatic Digital Vickers Hardness Tester with Motorized X-Y Table supplier

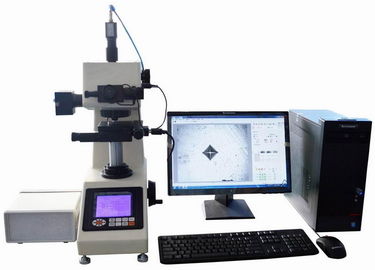

Large Image :  Software Control Half Automatic Digital Vickers Hardness Tester with Motorized X-Y Table

Product Details:

Place of Origin: Dongguan/China
Brand Name: Q1-Test
Certification: CE
Model Number: iVick-453MC2

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Box
Delivery Time: 15 Working Days
Payment Terms: T/T
Supply Ability: 10 Sets per Month
Detailed Product Description
Turret: Automatic Report: WORD Or EXCEL With Curve Chart
Magnification: 100x, 400x XY Table: Motorized, Size 100×100mm
Vertical Space: 100mm Horizontal: Space 98mm
Highlight:

digital hardness tester

,

portable metal hardness tester



Software Control Half Automatic Micro Vickers Hardness Testing Machine 400x Magnification



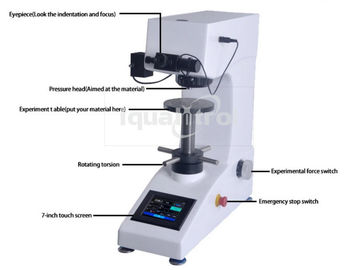

Brief Introduction:

iVick-453MC2 Automatic Micro Vickers Hardness Tester is integrated with several new technologies such as optical imaging, mechanical displacement, electronic control, digital imaging, image analysis, computer processing and so on.



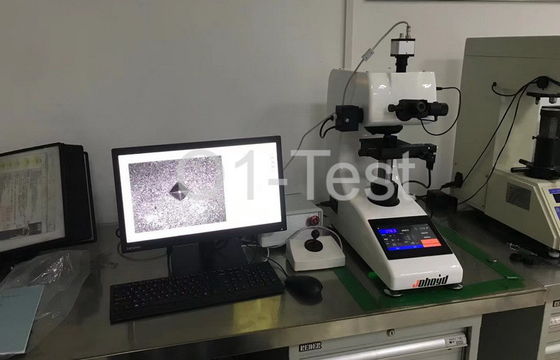

iVick-453MC2 controls the Micro Vickers hardness tester and automatic test table by the computer, and displays the indentation image on the computer screen.



By means of automatic reading and manual reading, it accurately measures the HV hardness, hardening depth, film thickness, distance between two points of metals and some non-metallic materials and various films.



It also can shoot metal surface morphology and taking fixed rate printing etc. This system breaks through the traditional test method, realize the hardness test of semi automatic, high precision, high repeatability, and it is the important equipment for materials analysis.





Machine Parameters:

Model iVick-453MC2
Test Force gf 10gf, 25gf, 50gf, 100gf, 200gf, 300gf, 500gf, 1000gf
N 0.098N, 0.246N, 0.49N, 0.98N, 1.96N, 2.94N, 4.90N, 9.80N
Test Range 1HV~2967HV
Test Mode HV/HK
Loading Method Automatic (Loading/Dwell/Unloading)
Turret Automatic
Conversion Scale HK, HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRK, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T, HS, HB
Data Output

Built-in Printer

WORD or EXCEL Report with Curve Chart

Hardness Reading Indentation Displaying and Automatic Measuring on PC
Objective 10x (Observe), 40x (Measure)
Eyepiece 10x
Total Magnification 100x, 400x
Resolution 0.0625μm
Dwell Time 0~60s
Light Source Halogen Lamp
Motorized X-Y Test Table Size: 100×100mm; Travel: 50×50mm; Resolution: 0.002mm
Vertical Space 100mm
Throat 98mm
Power Supply AC220V, 50Hz
Execute Standard ISO 6507, ASTM E384, JIS Z2244, GB/T 4340.2
Dimension 480×325×545mm, Packing Dimension: 600×360×800mm
Weight Net Weight: 31kg, Gross Weight: 44kg





Software Function:



System linkage: Through the communication interface it realizes the linkage between the system and the hardness tester.



Pressure linkage: When converting test force, the system percepts the test force change and displays in real time.



Turret linkage: The software controls the shifting between the objective and the indenter without manual control.



Loading linkage: The software controls the loading without manual control.



Measuring linkage: The software controls the turret, loading and directly reading the Vickers hardness value.



Light source linkage: Manual focus.



Image acquisition: Real time display of hardness image, store and print image.



Automatic measurement: Automatically find the four vertices of indentation with fast speed and accurate data, there are many professional algorithms to be suitable for different indentation. It continuously and immediately measures at specified coordinates once loading.



Automatic point search: The system automatically finds the best vertices near the four vertices of the indentation, greatly reduce the human error.



Diagonal measurement: Click the top left and lower right corner of the indentation, you can read the hardness value.



Four point measurement: Click the four point of the indentation and you can read the hardness value.



Hardness conversion: According to the national standard, automatically convert the hardness value between Brinell, Rockwell, Vickers, Knoop, real-time display.



Graphic report: Automatic record of measurement data, automatic generation of hardness-depth curves, saving or printing the hardness-depth curves and all indentation measurements. Save or print the indentation image and the current indentation hardness value. All the reports are saved in WORD file.



Results statistics: Output the multiple measured results of indentations by EXCEL and automatically count the measurement number, maximum value, minimum value, average value, variance, etc. of hardness.



Linkage control: Through the communication interface the system percepts the test force changes, controls the turret, loads and directly reads.



Automatic displacement: Equipped with high precision X-Y automatic test table.



Automatic identification: Leading indentation automatic identification technology, read D1 / D2 and HV value in 0.3 seconds.



Stable performance: The indentation of non mirror polishing, uneven light, not in the center can be read automatically.



Powerful functions: Such as manual reading, automatic reading, hardness conversion, depth-hardness curve, indentation image, picture and text report.



Easy to use: Through the hardness block calibration, in line with the users’ habits. It can be normal used with half day training.



Automatic reading: Original algorithm of automatic reading to automatic read a variety of indentation with fast speed and high accuracy.



Good repeatability: It is automatic reading with high repeatability and can satisfy the requirement of professional users.



Automatic scanning: Can automatically scan the sample edge and shape.





Computer Parameters:

1. Computer: Lenovo computer (2G memory, 500G hard disk, 19 inch LCD screen)

2. Ink jet printer

3. Operating system: WIN XP,WIN7



4. Digital imaging system

High resolution: 130 million pixel(1280×1024)

High speed acquisition: 1280×1024 resolution: 25 FPS

High definition: Black and white images and clarity is better.

Target surface size: 1/2 inch



5. X-Y automatic test table

Table size: 100×100×50 mm

Maximum travel: 50×50 mm

Minimum step: Less than 2μm

Movement speed: Adjustable

Control mode: Manual control, electric control, computer control



6. X-Y test table - computer control mode

Location movement: The test table directly moves to the software settings;

Point movement: Select any point of the sample, moved to the below of the indenter;

Directional movement: Click the eight directions to make the test table move and the moving step can be set up;



Arbitrary movement: Click any directions to make the test table move and make it easy for users to browse the specimen surface;

Variable speed movement: There are two speeds (fast and slow) when moving the test table and the speed is optional and adjustable;

Other function: Original position arbitrary setting, automatic reset, mechanical limit, and other professional features to meet various requirements.



7. Measuring method

Automatic mode——Automatic test table moving (X and Y direction) + automatic reading

Manual mode 1——Automatic loading + manual eyepiece scribed line measurement

Manual mode 2——Manual test table moving + manual focus + Automatic / manual measurement



8. Automatic / manual reading

Automatic reading time: Single indentation reading time is about 300 milliseconds;

Automatic measurement precision: 0.1μm;

Automatic measurement repeatability: ±0.8%

Manual reading: Manual pick, automatic search points, 4 points measurement, 2 diagonal measurement



9. Results save / output

Save / output measurement data and experimental parameters, including D1,D2,HV,X,Y etc.;

Save / output effective hardening layer depth curve report;

Save / output image.



Standard Configuration:

Name Qty Name Qty
Instrument Main Body 1 set 10x Digital Measuring Eyepiece 1 pc
Diamond Micro Vickers Indenter 1 pc 10x, 40x Objective each 1 pc
Weights 6 pcs Weight Axis 1 pc
Motorized Test Table 1 pc Flat Clamping Test Table 1 pc
Thin Specimen Test Table 1 pc Filament Clamping Test Table 1 pc
Horizontal Regulating Screw 4 pcs Level 1 pc
Fuse 1A 2 pcs Halogen Lamp 12V, 15~20W 1 pc
Power Cable 1 pc Screw Driver 2 pcs
Hardness Block 400~500 HV0.2 1 pc Hardness Block 700~800 HV1 1 pc
Anti-dust Cover 1 pc Usage Instruction Manual 1 copy
Computer (Hard disk: 500G, Memory: 2G, 19 inch LCD screen) 1 set Ink Jet Printer 1 set
CCD Camera 1 set 1.5x Adapter 1 pc
USB Softdog 1 pc Control Cables 1 pc
RS232 Cable 1 pc Motorized Test Table Control Box 1 pc
Measuring Software 1 pc
