Large Screen Auto Turret Micro Vickers Hardness Testing Machine with turbo worm lifting system

China Large Screen Auto Turret Micro Vickers Hardness Testing Machine with turbo worm lifting system supplier

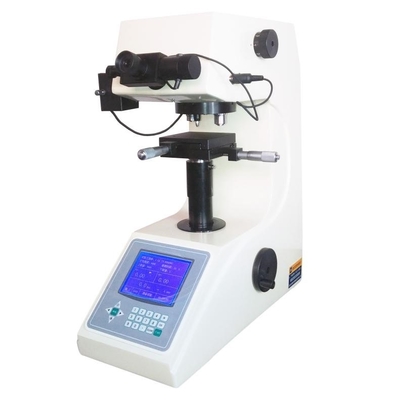

Large Image :  Large Screen Auto Turret Micro Vickers Hardness Testing Machine with turbo worm lifting system

Product Details:

Place of Origin: Dongguan/China
Brand Name: q1-test
Certification: CE
Model Number: HV-1000AHY

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Box
Delivery Time: 10 Working Days
Payment Terms: T/T
Supply Ability: 10 Sets per Month
Detailed Product Description
XY Table: Size: 100*100mm Magnification: Total 100×, 400×
Lifting: Turbo-worm Lifting System Printing: Wireless Blue-tooth Printer
Turret: Automatic Data Entry: Manually Input Data



Large Screen Auto Turret Micro Vickers Hardness Testing Machine with turbo worm lifting system



Model: HV-1000AHY



Product Features:

● iqualitrol HVS-1000AHY Digital auto turret micro vickers hardness tester, the test results are displayed on the LCD screen, the test scale, test force, indenter type, dwell time and the conversion unit can be displayed and set;



● The machine body is integral casting by high quality cast iron, with the automotive paint treatment process, the appearance is round and beautiful;



● The turbo-worm lifting system can greatly improve the test stability and accuracy, and there is no need to focus again after the test is completed;

● Equipped with automatic turret function, greatly reduce the manual interference and reading error;



● Convenient control system can automatically convert the unit of full hardness scale;

● CCD image processing system can be optional, the knoop indenter can be selected to measure the knoop hardness;



● Equipped with wireless blue-tooth printer, the data can be output through RS232 and USB interface port;

● Accuracy is in line with GB/T4340.2 ISO6507-2 and us ASTM E384.



Main Parameters:

Model HV-1000AHY
Range of Measurement 5-5000HV
Test Force

0.09807,0.2452,0.4904,0.9807,1.961,2.942,4.904,9.807N

(10,25,50,100,200,300,500,1000gf)

Data Entry Mode Manual
Turret Mode Automatic
Maximum Height of Specimen 120mm
Distance between Indenter Center and Wall 110mm
XY Worktable Size 100*100mm
XY Worktable Stroke 25*25mm
Minimum Unit of XY Worktable 0.01mm
Objective 10×,40×
Total Magnifications 100×,400×
Resolution 0.025μm
Hardness Resolution 0.1HV
Power Supply AC 220V,50Hz
Outline Dimension 530*290*490mm
Weight 45kg




Accessories Box:



XY Worktable One PC
Thin Shaft Test table One PC
Thin Sheet Test table One PC
Small Flat Forceps Test table One PC
Large V Block One PC
Small V Block One PC
Diamond Quadrilateral Cone Head One PC
Standard Vickers Hardness Block Two Blocks
