| CHVS-2000Z: | Digital 10X Eyepiece | CHV-2000Z: | Analog 10X Eyepiece |
|---|---|---|---|
| Test Force: | 25gf - 2000gf | Turret: | Automatic Turret |
| Objectives: | 10x, 40x | Test Space: | Height * Depth = 165 * 130mm |

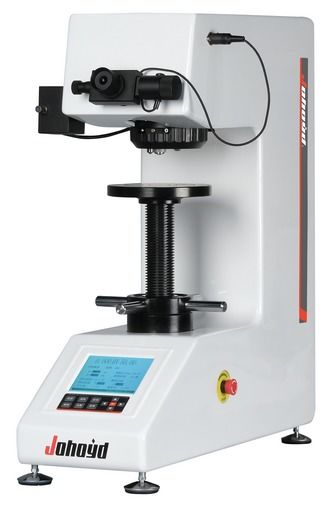

Sensor Loading Low Load Micro Vickers Hardness Tester Max Force 2Kgf
Model: CHVS-2000Z
Brief Introduction:
Iqualitrol digital display automatic turret micro-Vickers hardness tester adopts a closed-loop loading control system, which has high precision of test force, good repeatability and stability of indication value.
CHVS-2000Z adopts a high-resolution display screen, which is intuitive and clear, easy to operate, and has an energy-saving mode.
CHVS-2000Z equips with a digital micrometer eyepiece, no need to check hardness table or input the indentation diagonal line, the test force, indentation length, dwell time, measurement times, conversion scale, date and time are intuitively displayed on the screen, and only need to press the eyepiece button then automatically calculate the hardness value and display it on the screen.
The hardness test results are saved in real time and printed out, and the maximum, minimum and average values are automatically calculated.
Technical Specifications:
| Model | CHVS-2000Z |
| Scales | HV0.025, HV0.05, HV0.1, HV0.2, HV0.3, HV0.5, HV1, HV2 |
| Display | Hardness Value, diagonal (D1, D2), dwell time, Test numbers, Average value, Hardness Conversion |
| Test force | 0.025kgf, 0.05kgf, 0.1kgf, 0.2kgf, 0.3kgf, 0.5kgf, 1kgf, 2kgf |
| Test Mode | HV/HK |
| Turret | Automatic Turret |
| Objectives | Dual Lens 10X, 40X |
| Loading Control | Automatic (Loading/dwell/unloading) |
| Dwell time | 1~99 seconds |
| Light Path | Dual Light path (Eyepiece, CCD channel) |
| Optical System |
Objectives: 10x, 40x; Eyepiece: 10x (optional 15x) Total Magnification (μm): 100x, 400x; Measuring range(μm):200 Resolution (μm): 0.0625 |
| Menu Language | English |
| Standards | ISO 6507, ASTM E92, JIS Z2244, GB/T 4340.2 |
| Hardness Range | (5-9999)HV |
| XY Test Anvil |
Size (mm):100×100, Travel (mm): 25×25 Resolution(mm):0.01 |
| Max Height of Specimen | 165mm |
| Depth Throat | 130mm |
| Data output | Optional printer |
| Power Supply | AC220V/50HZ |
| Dimension | 585×200×630mm |
| Weight | 42Kg |
