Touch Screen Digital Micro Vickers Hardness Testing Machine with Automatic data correction

China Touch Screen Digital Micro Vickers Hardness Testing Machine with Automatic data correction supplier

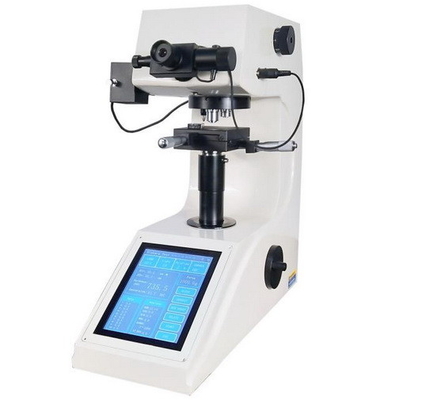

Large Image :  Touch Screen Digital Micro Vickers Hardness Testing Machine with Automatic data correction

Product Details:

Place of Origin: Dongguan/China
Brand Name: q1-test
Certification: CE, ISO
Model Number: HVS-1000THY

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Box
Delivery Time: 3 Working Days
Payment Terms: T/T, Western Union
Supply Ability: 10 Sets per Month
Detailed Product Description
Accuracy: Complies With GB/T4340.2-2018 ISO6507-2 And American ASTM E384 Curve Display: Directly Display The Change Of Hardness Value
Data Storage: Can Save More Than 2000 Data Range Set: Test Value Exceeds The Set Range, An Alarm Will Sound
Eyepiece: High-definition Micrometer Eyepiece With Built-in Length Encoder Hardness Conversion: Automatically Convert The Unit Of The Full Hardness Scale



Touch Screen Digital Micro Vickers Hardness Tester Manual Turret automatic data correction



Model: HVS-1000THY



Key Features:

● iqualitrol new HVS-1000THY touch screen digital display micro Vickers hardness tester, adopts 8-inch touch screen and high-speed ARM processor, intuitive display, friendly human-computer interaction, easy operation; fast calculation speed, huge database storage, automatic data correction, and provide Data line report;



● The fuselage is made of high-quality cast iron for one-time casting, combined with the car paint treatment process, the shape is round and beautiful;



● The worm lifting system greatly improves the test stability and test accuracy, and there is no need to focus again after the test is completed;



● High-definition measurement and observation-double objective lens combination, combined with high-definition micrometer eyepiece with built-in length encoder, realizes one-key measurement of indentation diagonal, greatly reducing human operation interference and reading errors;



● Convenient numerical control system, which can automatically convert the unit of the full hardness scale;



● The maximum and minimum values of the hardness value can be set, and when the test value exceeds the set range, an alarm will sound;



● With software hardness value correction function, the hardness value can be directly corrected within a certain range;



● With database function, the test data can be automatically grouped and saved, each group can save 10 data, and can save more than 2000 data;



● It has the function of hardness value curve display, which can directly display the change of hardness value;

● Optional CCD image processing system, and optional Knoop indenter for Knoop hardness measurement;



● Configure a wireless bluetooth printer, and output data through RS232 and USB interfaces;

● The accuracy complies with GB/T4340.2-2018 ISO6507-2 and American ASTM E384.





Technical Specification:



Model HVS-1000THY
Range of Measurement 5-5000HV
Test Force

0.09807,0.2452,0.4904,0.9807,1.961,2.942,4.904,9.807N

(10,25,50,100,200,300,500,1000gf)

Data Entry Mode Automatic
Turret Mode Manual
Maximum Height of Specimen 120mm
Distance between Indenter Center and Wall 110mm
XY Worktable Size 100*100mm
XY Worktable Stroke 25*25mm
XY Worktable Move Resolution 0.01mm
Objective 10×,40×
Total Magnification 100×,400×
Measuring Eyepiece Resolution 0.025μm
Hardness Resolution 0.1HV
Power Supply AC 220V,50Hz
Outline Dimension 530*290*490mm
Weight 45kg





Accessories Box:



XY Worktable One PC
Thin Shaft Test table One PC
Thin Sheet Test table One PC
Small Flat Forceps Test table One PC
Large V Block One PC
Small V Block One PC
Diamond Quadrilateral Cone Head One PC
Standard Vickers Hardness Block Two Blocks
