Product Details:
Payment & Shipping Terms:
|
| Correction: | With Software Hardness Value Correction Function | Vision Measure: | CCD Image Processing System With Vickers Software |
|---|---|---|---|
| Eyepiece: | Realizes One-key Measurement Of Indentation Diagonal | Objectives: | High-definition Measurement And Observation-double Objective Lens |
| Lifting Structure: | Turbo-worm Lifting System Improve The Test Stability And Accuracy | Body Shell: | Made Of High-quality Cast Iron For One-time Casting |

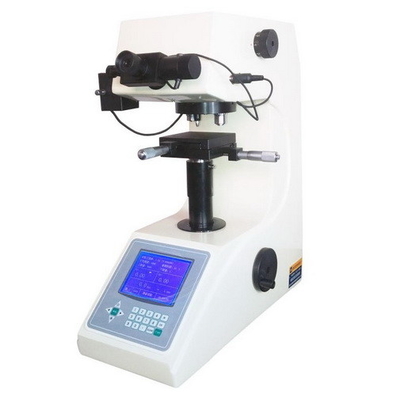

Worm lifting structure Manual Turret Digital Micro Vickers Hardness Tester Large LCD
Model: HVS-1000HY
Product Features:
● iqualitrol HVS-1000HY Digital micro vickers hardness tester, the test results are displayed on the LCD screen, the test scale, test force, indenter type, holding time and the conversion unit can be displayed and set；
● The machine body is integral casting by high quality cast iron, with the automotive paint treatment process, the appearance is round and beautiful;
● The turbo-worm lifting system can greatly improve the test stability and accuracy, and there is no need to focus again after the test is completed;
● HD measurement and observation - dual objective lens combination, combined with the built-in length encoder HD micrometer eyepiece, to achieve indentation diagonal one-key measurement, greatly reduce the manual interference and reading error；
● Convenient control system can automatically convert the unit of full hardness scale;
● CCD image processing system can be optional, the knoop indenter can be selected to measure the knoop hardness;
● Equipped with wireless blue-tooth printer, the data can be output through RS232 and USB interface port；
● Accuracy is in line with GB/T4340.2 ISO6507-2 and us ASTM E384.
Technical Specifications:
| Model | HVS-1000HY |
| Range of Measurement | 5-5000HV |
| Test Force |
0.09807,0.2452,0.4904,0.9807,1.961,2.942,4.904,9.807N (10,25,50,100,200,300,500,1000gf) |
| Data Entry Mode | Automatic |
| Turret Mode | Manual |
| Maximum Height of Specimen | 120mm |
| Distance between Indenter Center and Wall | 110mm |
| XY Worktable Size | 100*100mm |
| XY Worktable Stroke | 25*25mm |
| XY Worktable Move Resolution | 0.01mm |
| Objective | 10×,40× |
| Total Magnification | 100×,400× |
| Measuring Eyepiece Resolution | 0.025μm |
| Hardness Resolution | 0.1HV |
| Power Supply | AC 220V,50Hz |
| Outline Dimension | 530*290*490mm |
| Weight | 45kg |
Accessories Box:
| XY Worktable | One PC |
| Thin Shaft Test table | One PC |
| Thin Sheet Test table | One PC |
| Small Flat Forceps Test table | One PC |
| Large V Block | One PC |
| Small V Block | One PC |
| Diamond Quadrilateral Cone Head | One PC |
| Standard Vickers Hardness Block | Two Blocks |
